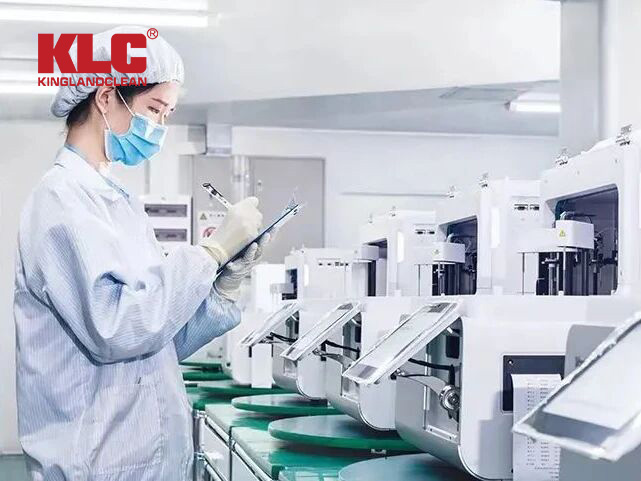

Walking into a modern semiconductor wafer fabrication plant or a high-end biopharmaceutical workshop, one is greeted by fully equipped engineers, precisely maneuvering robotic arms, and an almost 'vacuum-like' clean environment. The low hum of the air purification system seems to tell a story of humanity's relentless pursuit of absolute cleanliness. This is the cleanroom—the cornerstone of modern high-end manufacturing.

Cleanroom: A Micron-Level Industrial Fortress

A cleanroom, also known as a controlled environment room, is not simply a room that is cleaned physically, but a controlled environment created through precise engineering methods. Its core lies in controlling airborne dust particles, microorganisms, harmful gases, and other contaminants to extremely low concentration levels to meet the stringent requirements of specific manufacturing processes.

• Micron-level cleanliness standards: The cleanliness of a cleanroom follows international standards (such as ISO 14644-1), with levels ranging from ISO Class 1 (highest) to ISO Class 9. For example, in an ISO Class 5 cleanroom (equivalent to the former "Class 100" standard), the number of particles larger than 0.5 microns per cubic meter of air must not exceed 3,520. In contrast, the quantity of particles in the air of an ordinary urban environment can reach several million. In the field of chip manufacturing, when line widths enter the 3-nanometer era, even the tiniest dust particle can become a "lethal killer" causing product defects.

• Comprehensive control beyond cleanliness: In addition to particulate matter, a cleanroom must precisely control temperature, humidity, pressure differential, static electricity, and even vibration. For instance, semiconductor photolithography areas require temperature fluctuations to be controlled within ±0.1°C to prevent misalignment caused by thermal expansion and contraction; simultaneously, maintaining positive pressure inside the cleanroom can effectively prevent unfiltered dirty air from entering.

Core of the Design: Building a "Zero-Pollution" Ecosystem

The design goal of a cleanroom goes far beyond simply "filtering the air"; it is about creating a dynamic ecosystem capable of continuously resisting and eliminating contamination. The core design principles are reflected in the following aspects:

• The Art of Airflow Organization: Airflow is the "blood" of a cleanroom. Designers use Computational Fluid Dynamics (CFD) simulations to optimize airflow paths, ensuring that clean air evenly "washes" the entire work area and rapidly removes contaminants. In the highest-grade clean areas, vertical unidirectional (laminar) flow is typically used, with clean air flowing from top to bottom like an "air piston" to remove pollutants with maximum efficiency.

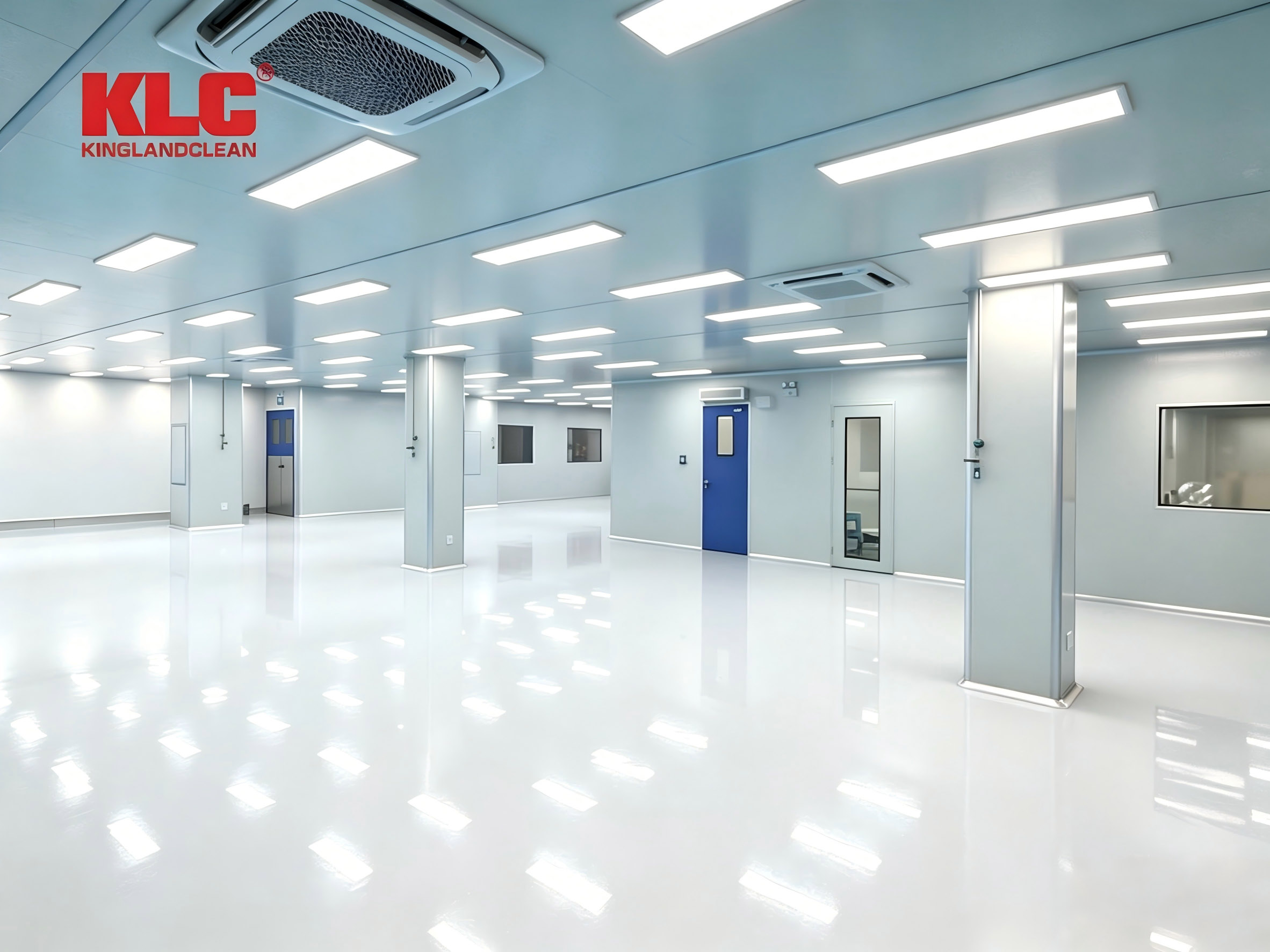

• Sealing of Building Structures: The walls, ceilings, and floors of the workshop form the "skin" of the clean space. All materials must be smooth, non-dusting, dust-resistant, and corrosion-resistant, such as color steel panels, stainless steel sheets, and epoxy self-leveling floors. All joints require rounded treatments and reliable sealing, and all pipelines must be concealed to eliminate any dead corners where dirt could accumulate.

• Intelligent Dynamic Monitoring: Modern cleanrooms are a "smart living entity." By deploying laser particle counters, temperature and humidity sensors, and differential pressure meters, combined with a Building Management System (BMS), real-time 24/7 monitoring and automatic adjustment of environmental parameters can be achieved, ensuring that any minor anomalies are detected and addressed immediately.

Core Weapon: The 'Skynet' Built by Multi-Stage Filtration Equipment

The key to achieving ultimate purification lies in a meticulously coordinated filtration equipment system, which functions like the 'super lungs' of a workshop, providing multiple layers of protection to ensure clean air.

• Primary and Medium Efficiency Filters (Pre-Filtration): This is the first line of defense in an air purification system. The primary filter (such as G4 grade) intercepts large particles above 5 microns, including dust and hair; the medium efficiency filter (such as F8 grade) further captures medium particles between 1–5 microns. Their main purpose is to protect the terminal high-efficiency filters and extend their service life.

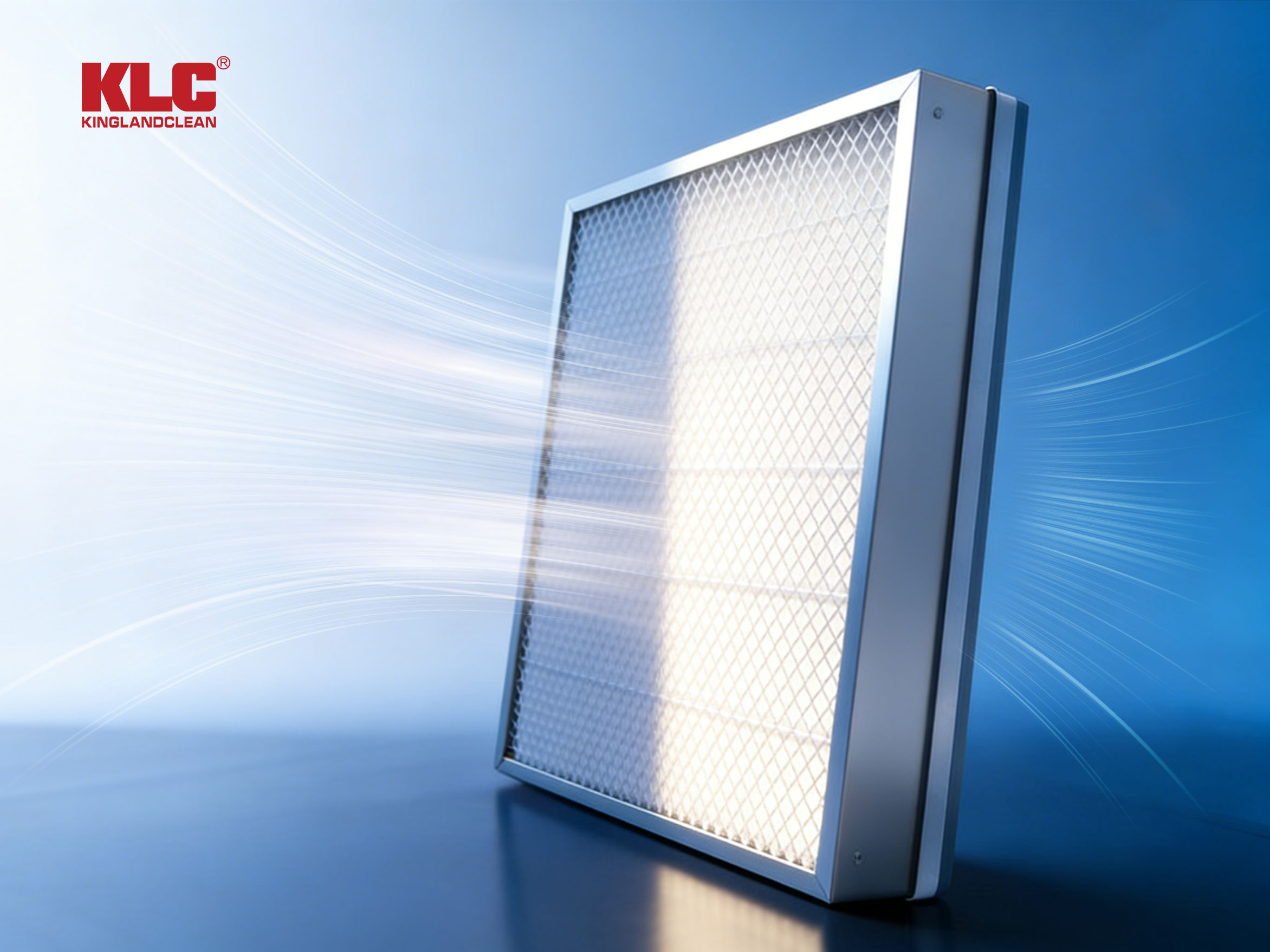

• High-Efficiency/Ultra-High-Efficiency Filters (HEPA/ULPA): This is the 'heart' of a cleanroom. High-Efficiency Particulate Air (HEPA) filters can capture 99.97% of particles as small as 0.3 microns, while the more advanced Ultra-Low Penetration Air (ULPA) filters can capture even smaller particles. Installed at the end of the air supply system (such as in Fan Filter Unit (FFU), they are the final assurance that the air delivered to the cleanroom meets the required cleanliness level.

• Chemical Filters (AMC Control): In cutting-edge industries like semiconductors, controlling only particulate matter is far from sufficient. Gaseous molecular pollutants (AMC), such as acids and bases generated during processing, are equally critical. Chemical filters filled with activated carbon or other specialized media selectively adsorb these molecular-level pollutants, providing more comprehensive protection for the production process.

When air is purified to its extreme, it is no longer ordinary air but a special medium that carries the highest precision and strictest standards of modern industry. From the smartphones in our hands to life-saving vaccines, cleanrooms, with their 'invisible precision,' silently support the 'visible heights' of human technological civilization.
