In industrial production and scientific research, many critical processes are extremely sensitive to airborne dust and microorganisms; a single speck of dust can ruin a microchip, and one bacterium can render an entire batch of pharmaceuticals unfit for use. Laminar flow hoods are air purification units designed specifically to meet these localized "Class 100" cleanliness requirements.

 What is a laminar flow hood? How does it work?

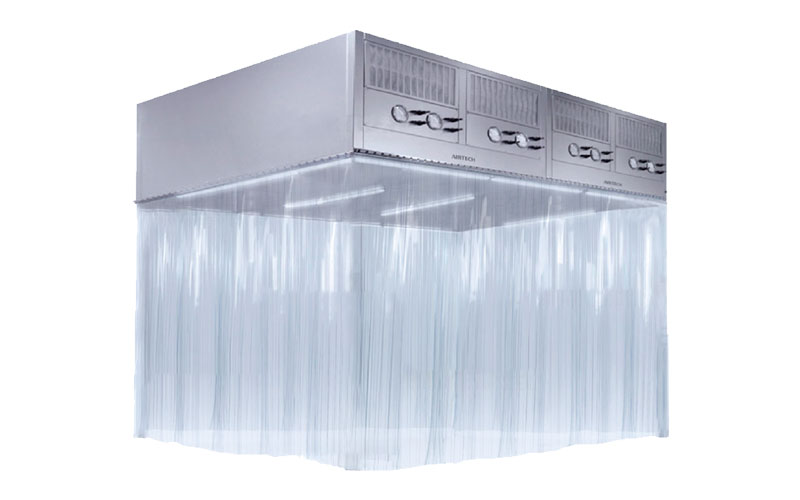

A laminar flow hood is an air purification device that provides a localized, high-cleanliness environment. It can be flexibly installed above specific process points requiring high cleanliness—either as a standalone unit or combined with others to form a continuous clean zone. Its core operating principle is straightforward: a fan draws in air, which passes through two stages of filtration (pre-filters and HEPA/ULPA filters). The air is then guided through a flow-equalizing device to create a uniform, stable, vertical unidirectional airflow (i.e., "laminar flow") that continuously sweeps over the work area.

Laminar Flow Hood vs. FFU: What is the difference? These two concepts are often confused within the industry. An FFU (Fan Filter Unit) is a modular device that integrates a fan and a high-efficiency filter; it emphasizes "plug-and-play" flexibility and is designed for large-scale installation within cleanroom ceiling grids. In contrast, a laminar flow hood features a more complete structure—typically including its own housing and flow-equalization layer—making it better suited for creating a localized Class 100 environment at specific points within lower-grade cleanrooms. Simply put: FFUs are like "building materials," while laminar flow hoods are like "equipment."

 Key Application Areas

Electronics Manufacturing: Guarding Against Dust

Processes such as chip packaging, LCD panel assembly, and precision optical instrument manufacturing demand extremely strict control over dust particles ≥0.5μm in size. Laminar flow hoods provide a localized clean environment of ISO Class 5 (Class 100) or higher. In the electronics industry, they are often used in conjunction with clean booths or arranged in series along production lines to form "clean laminar flow zones," ensuring that critical workstations remain free from contamination.

Food Processing: Ensuring Biosafety

Processes such as probiotic cultivation, aseptic packaging, and dairy product filling also rely on the localized clean environments provided by laminar flow hoods. Unlike the pharmaceutical industry, which prioritizes sterility, the food industry focuses more on controlling microbial contamination and extending product shelf life. Laminar flow hoods effectively isolate products from potential contamination caused by operators and the surrounding environment by continuously delivering clean air.

Healthcare and Scientific Research: Ensuring Operational Safety

In hospital settings, laminar flow hoods are used for procedures requiring sterile conditions, such as bone marrow transplant wards, chemotherapy drug preparation, and the compounding of intravenous nutritional solutions. In laboratories, they provide a stable and reliable localized Class 100 environment for tasks like cell culture and microbial inoculation.

Installation Methods and Selection Guide

Laminar flow hoods come in three main configurations: suspended (ceiling-mounted, suitable for fixed workstations), floor-stand mounted (suitable for locations where ceiling suspension is not feasible), and mobile (laminar flow carts; these offer flexible relocation and include models with UPS battery backup providing 2–8 hours of runtime).

 Key Performance Indicators (Based on a standard Class 100 laminar flow hood):

Cleanliness: Dust particles ≥0.5 μm in the work area ≤3.5 particles/liter (FS209E Class 100)

Average Airflow Velocity: 0.25–0.55 m/s (adjustable)

Noise Level: ≤64 dB(A)

Power Supply: 220V, 50Hz

 Maintenance Essentials and Common Misconceptions

1. Regular HEPA Filter Replacement: It is recommended to replace pre-filters every 1–6 months and HEPA filters every 6–12 months. These filters cannot be washed; a leak test is recommended after replacement to verify the seal.

2. Power Off During Malfunctions: If the equipment operates abnormally, cut off the power immediately and contact a professional for service; do not attempt to disassemble the unit yourself.

3. Environmental Limitations: Operating temperature must not exceed 50°C, and the use of open flames indoors is strictly prohibited.
