In the sophisticated world of modern cleanroom technology, every gram of weight and every cubic centimeter of volume is crucial to efficiency and performance. When we shift our focus from the massive air shower tunnels to their core "heart"—the high-efficiency particulate air (HEPA) filter—a significant technological iteration is underway: the Mini-pleat hepa filter is gradually becoming a new favorite in cleanrooms due to its lightweight and compact characteristics.

Today, let's delve into the microscopic world of filters, unveil the mystery of hot melt adhesive separation technology, explore how it successfully "slims down" filters, and compare its essential differences from traditional separator filters in terms of volume, weight, and airflow distribution.

I. The Secret to Lightness: Hot Melt Adhesive Separation Technology

Traditional separator filters are bulky because they use corrugated aluminum foil or cardboard as spacers to stack layers of filter paper. the mini-pleat hepa filter , on the other hand, are incredibly lightweight thanks to advanced hot melt adhesive separation technology.

In the manufacturing process, the the mini-pleat filter  no longer relies on rigid physical septa, but instead uses extremely fine glass fiber filter paper. To prevent the filter paper from sticking together under air pressure, engineers use hot melt adhesive (an adhesive that melts when heated and cures rapidly when cooled) to apply dots or lines with extremely high precision at the folds of the filter paper.

This technology is like giving the filter paper an "invisible skeleton." The hot melt adhesive cures instantly, fixing the filter paper within a specific spacing, ensuring structural stability while completely avoiding the huge space occupation and weight burden of traditional rigid partitions. This allows the filter paper to be folded more tightly, significantly increasing the filtration area per unit volume (V-fold technology), thereby achieving miniaturization and weight reduction of the equipment.

II. Head-to-Head: A Comprehensive Comparison of Mini-pleat Filters and Separator Filters

To help you understand the differences between the two more intuitively, we will conduct an in-depth comparison from three dimensions: volume, weight, and airflow distribution.

1. Size: From "enormous" to "exquisitely slim"

Separator Filter: Due to the need to reserve space for rigid partitions and the limited folding depth of the filter paper, their structure is often bulkier. For the same rated airflow, the volume of a panel filter is typically 1.5 to 2 times that of a the mini-pleat filter . This means it requires more installation space, which is a waste of space in the limited ceiling or side walls of cleanrooms.

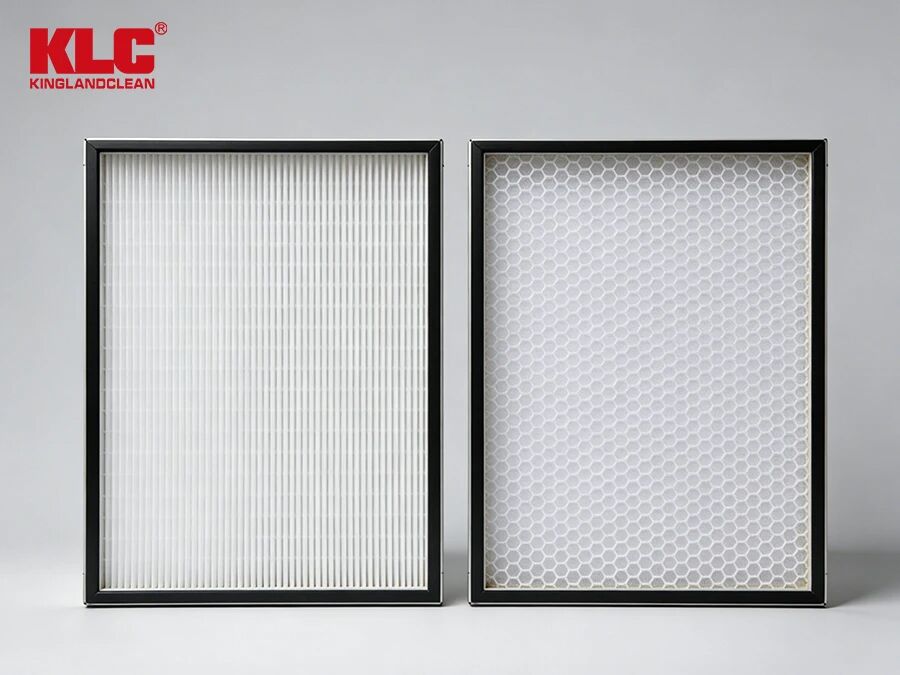

Mini-pleat Filter: Thanks to hot melt adhesive technology and tight V-shaped folds, their structure is extremely compact. It's like folding a huge net into a small space, typically only about half the volume of a comparable filter with pleats. This small size allows it to easily adapt to various compact installation environments, providing greater flexibility for cleanroom design.

2. Weight: From "Carrying Heavy Loads" to "Easy Installation"

Separator Filter: The use of metal or cardboard panels, combined with a relatively loose structure, makes them quite heavy. Installation and replacement often require two people, which is not only labor-intensive but also increases the risk of working at heights.

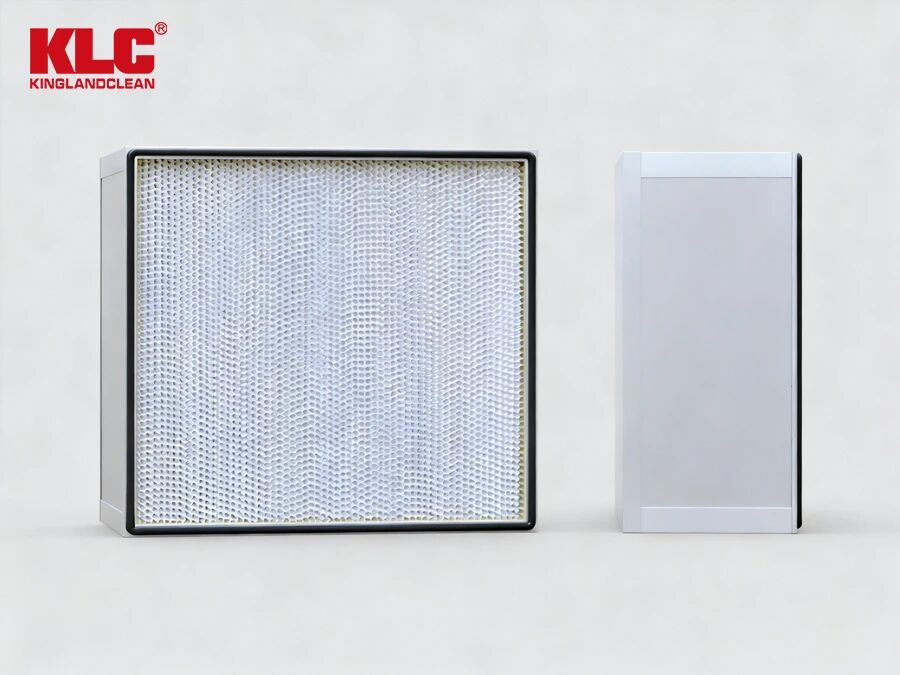

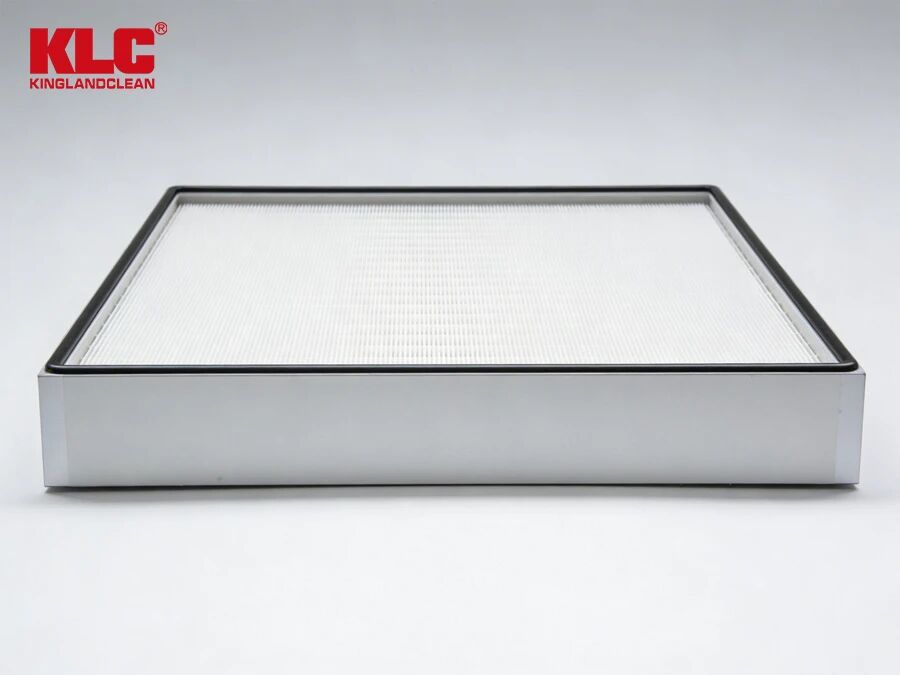

Mini-pleat filter: These typically use a lightweight aluminum alloy frame or ABS plastic frame, combined with lightweight flame retardant filter media. Their weight is usually only 1/3 or even less of a comparable framed filter. For maintenance personnel, this means that replacement can be done with one hand, greatly reducing labor intensity and improving maintenance efficiency.

3. Airflow distribution: From "turbulent" to "laminar"

Separator Filter: While effective in filtering, their internal airflow channels are relatively wide and irregular. Airflow passing through these channels can easily generate eddies or uneven resistance, resulting in uneven airflow distribution at the outlet surface, and sometimes even creating "dead zones."

Mini-pleat Filter: Hot melt adhesive separation technology ensures a high degree of consistency in filter paper spacing. When clean air passes through, the airflow is smoother and more uniform, flowing vertically. This uniform laminar flow characteristic more effectively delivers clean air to the work area, avoiding the accumulation of localized contaminants and providing a cleaner environment for precision electronics manufacturing or air filtration biopharmaceutical.

III. Cleanliness Upgrade Behind Lightweight Design

The emergence of the Mini-pleat high-efficiency filter is not only a "slimming down" in physical form, but also a leap forward in cleaning technology.

Utilizing hot melt adhesive separation technology, it reduces size, lightens weight, and optimizes airflow without sacrificing filtration efficiency. For modern cleanroom engineering projects that prioritize high efficiency, energy saving, and flexible layout, the Mini-pleat high-efficiency filter is undoubtedly a superior choice. Like a graceful dancer, it safeguards the purity of every breath of air within a small space.
