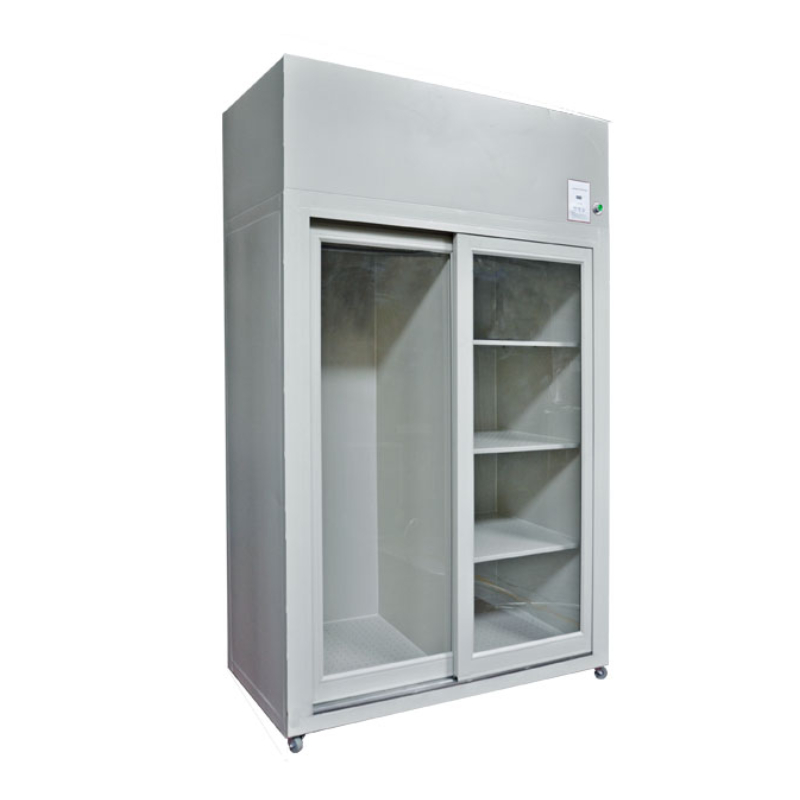

Dust free wardrobe, also called clean room garment cabinet, is an effective equipment used to store and hang clean clothes.
It can effectively purge and remove particles such as lint and dust ingress on the clothing fabric.
A direct-drive variable-speed blower is mounted above the HEPA filter to prevents contaminants from entering the unit, keeping garments safe and completely free of particulates.
Item NO. :
KLC-CWEfficiency :
99.99%@0.3μmCabinet material :
Cold rolled steel with powder coated / Stainless steelAir supply :
Vertical air flowOptional :
LED lamp / UV lamp
Production information
KLC series clean wardrobe, also known as dust-free wardrobe, is a wardrobe dedicated to use in clean industry, the use of three shock absorption measures and removable brake casters helps to reduce the vibration and easy to move, the wheels set beneath the clean wardrobe makes the movement flexible and convenient.
Product Specification
Model |
CW-001 |
CW-002 |
CW-003 |
|
---|---|---|---|---|
Module Size (WxLxHmm) | 1000x700x2300 | 1500x700x2300 | 2000x700x2300 | |
Static pressure box material |
A3 cold rolled steel with >epoxy powder / stainless stee |
|||
Average wind speed (m/s) | 0.3~0.5 | |||
Noise db 1 meter below the HEPA filter | 55-63 | |||
Fan parameters | Power supply (V/Hz) | 220/50 | ||
Type | Aluminum turbofan | |||
Vibration (mm/s) | 0.2~0.5 |
KLC clean wardrobe adopt 99.99%@0.3um filtration efficiency, optional components includes LED, UV lamps etc.
Application
Widely used for clean clothing storage in pharamaceutical, preparations, electronics, precision instruments, meters, food and other special occasions such as clean room, laboratory, operating room, GMP plant etc, in order to prevent from any air pollution of clean clothes during collection and transmission process.
