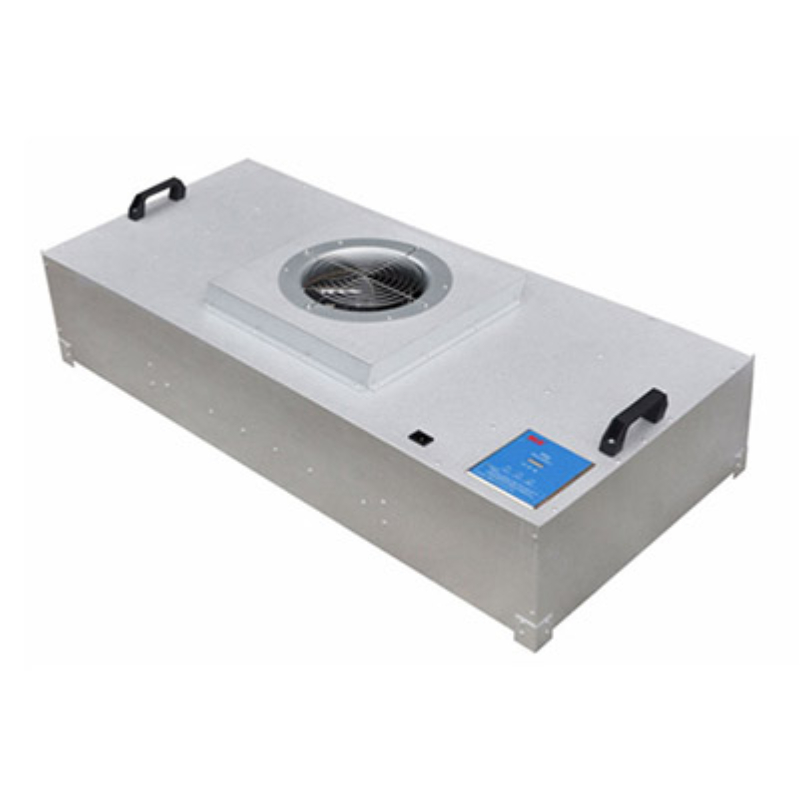

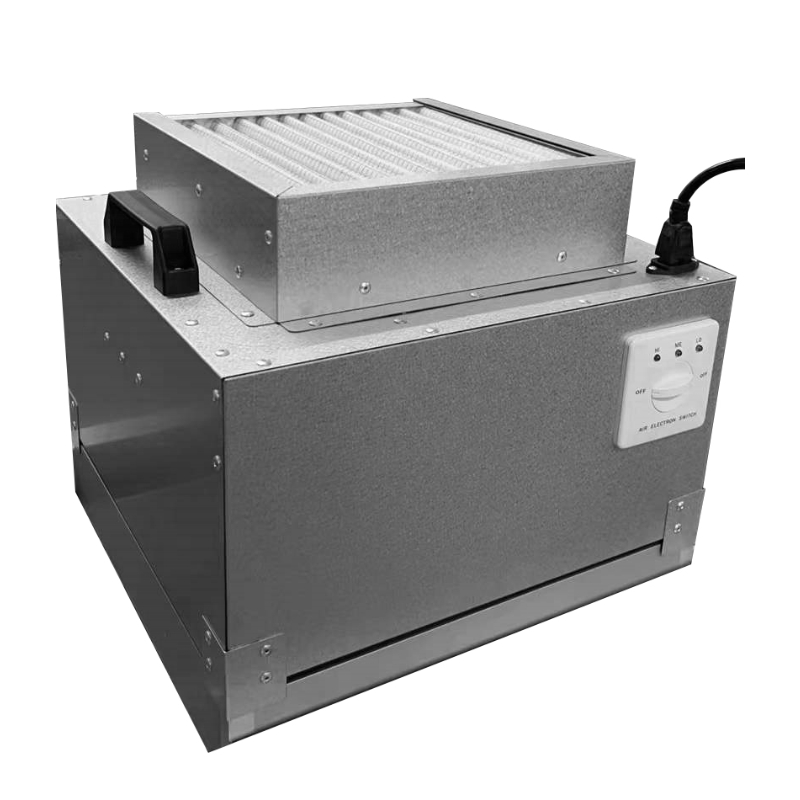

Clean Room AC/EC Ordinary FFU(Fan Filter Unit)

Clean Room AC/EC Ordinary FFU(Fan Filter Unit)

ISO14644-1 standards, with overheating protection in order to increase users' safety application.

The surface is smooth and bright, lower air resistance and good sound insulation. Special air entrance design and lower the noise effectively.

  • Item NO. :

    FUAC
  • Cabinet material :

    Cold rolled steel with powder coated / Galvalume / Aluminum / Stainless steel
  • Control method :

    Group control or single control
  • Fan :

    AC/EC
  • Air velocity(m/s) :

    0.35~0.55

ffu for clean room



FFU is generator set with motor inside which is used in the turbulent layer and laminar flow clean room. It has characteristic of continuous use. The wind speed can reach 0.45m/s ±20%





Strict monitoring

KLC FFU is tested according to the standard of ISO14644-1 before package.





Product feature

1.Overheating protection

Inside the KLC fan filter unit, equipped with overheating protection in order to increase users' safety application.

The surface is smooth and bright, lower air resistance and good sound insulation. Special air entrance design and lower the noise effectively.

2.Prolonging lifespan

The fan filter unit works as an average air speed of 0.45m/s, stable outlet speed, effectively shorten the time of replacing the HEPA filter. In the meanwhile, can extend the service life of fans.

3.Lower operational cost

FFU might cost higher during initial investment period, but its more energy saving and free from maintenance during the performance period.

4.Multi-speed levels adjustment, low vibration and noise

The design of multi-speed level adjustment enble to increase the lifespan of the fan filter and in the meanwhile to control the vibration, noise and calorific value at a certain level accordingl to the ISO14644-1 standards

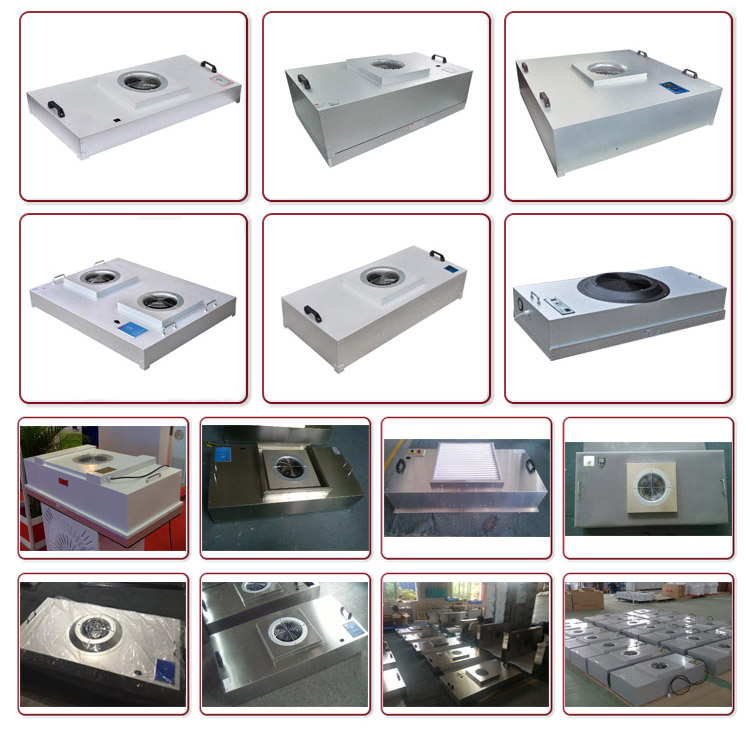

Custom Design

ffu filter unit

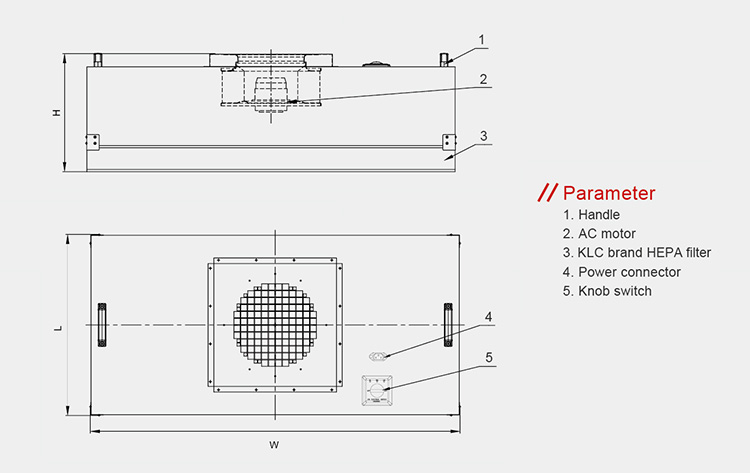

Product Specification

Model

FUAC-1

FUAC-1

FUAC-3

FUAC-4

Size (WxLxHmm) 615x615x375 575x1175x375 615x1225x375 1175x1175x375
Air chamber material Galvalume / aluminum / stainless steel
Air Flow (m³/h) 600~700 1000~1100 1100~1200 2200~2300
Air velocity (m/s) 0.45 ± 20%
Total pressure (Pa) 175 185 195 200
Power (W) 85 95 115 245
Weight (kg) 25 37 40 45
Noise dB (1m below the HEPA filter) 55~63
Vibration (mm/s) 0.2~0.7
Power supply 220V / 50Hz
HEPA filter Size (WxHxDmm) 610x610x69 570x1170x69 610x1220x69 1170x1170x69
Efficiency 99.99% 0.3μm
Frame High quality anodized aluminum

Initial pressure

110Pa@0.45m/s±15%
Gasket EVA / PU foam



Application

Semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room , or any other places.

Leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
You may be interested in the following products...
Industry HEPA Filters

 High efficiency, good sealing, low resistance, long life-span, and light weight, convenient installation and replacement .

Learn More
Separator air Filter

Wedge shaped pleat design to prevent the filter media from damage.

Learn More

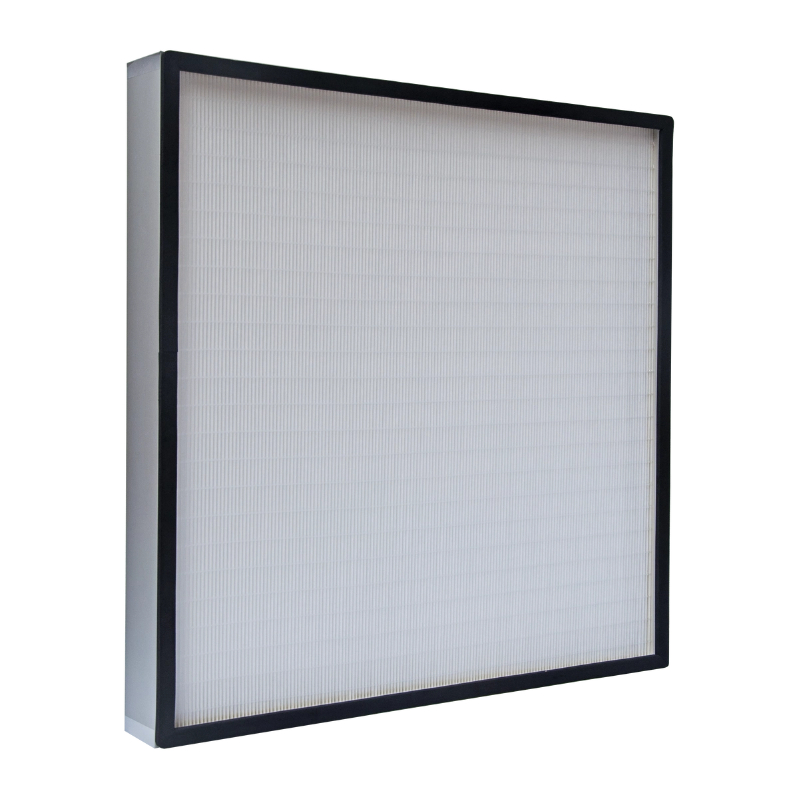

Knife-edge Mini-pleat Filter

Two sides with epoxy faceguard to protect the filter media

Learn More
MERV 20 HEPA filter

The best partner of knife-edge frame, more effective and efficient sealing performance.

Learn More

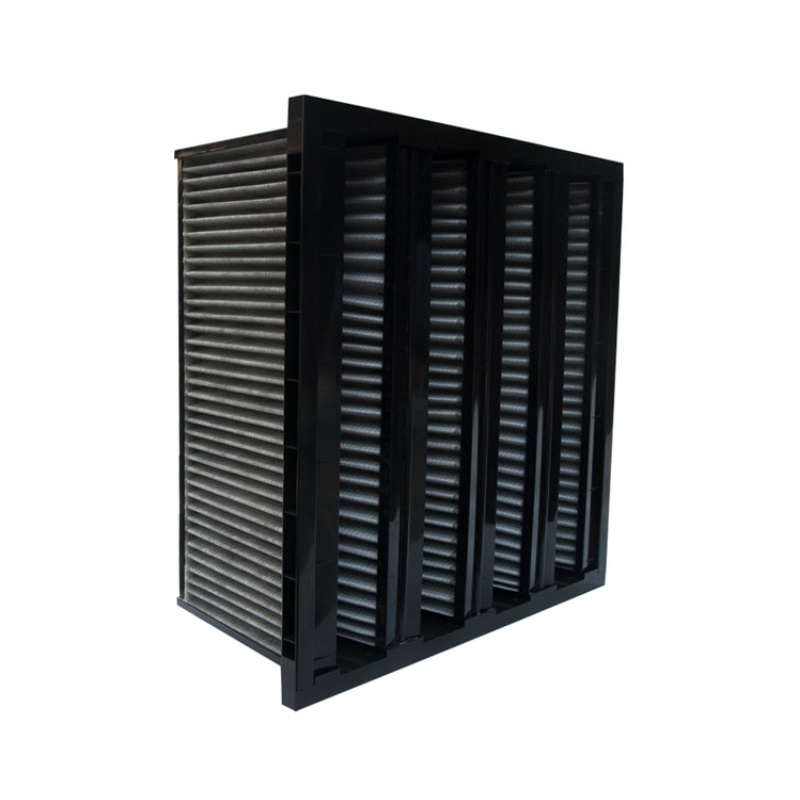

Medium V-bank Filter

The V-bank filter offers advantages such as increased surface area, high dust-holding capacity, low airflow resistance, and customizable efficiency.

Learn More
custom v bank filter

V bank filters are pre-filters before HEPA filters, the role and function are the same as pocket filters, but v bank filters offer more stable performance.

Learn More
Medium mini pleat filter

The cardboard frame is lightweight, which makes handling and installation easier.

Learn More
Synthetic Fiber Pocket Medium Filter

Large dust holding capacity and stable performance, cost-effective, affordable.

Learn More
custom electrostatic air filter

Low energy consumption, low operating costs. Green environmental protection, no secondary pollution.

Learn More
high temperature air filter

Withstand high temperatures, enhanced filtration efficiency, extended lifespan, protection of downstream equipment, and versatility in various industrial applications.

Learn More

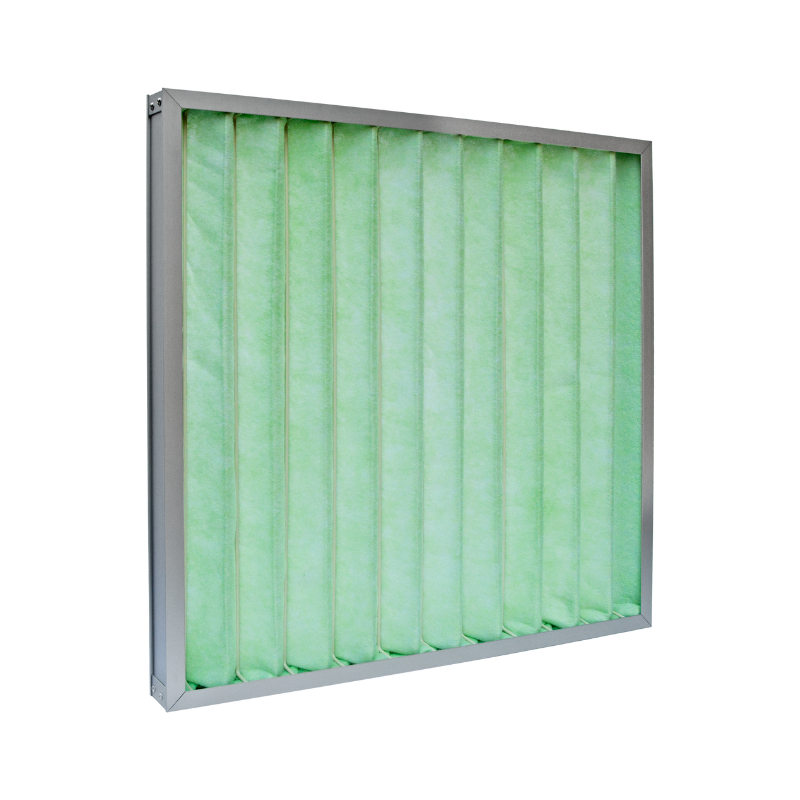

Primary Pleated Filter

Ideal as a pre-filter in air handling  units,extends the life of the high efficiency filters.

Learn More
fan filter unit

ISO14644-1 standards, with overheating protection in order to increase users' safety application. The surface is smooth and bright, lower air resistance and good sound insulation. Special air entrance design and lower the noise effectively.

Learn More
air shower room

 Use efficiency increased by 50%: Round air without collision, centrifugal rotating, and tension continuously strengthen, quickly take away the dust particles

Learn More

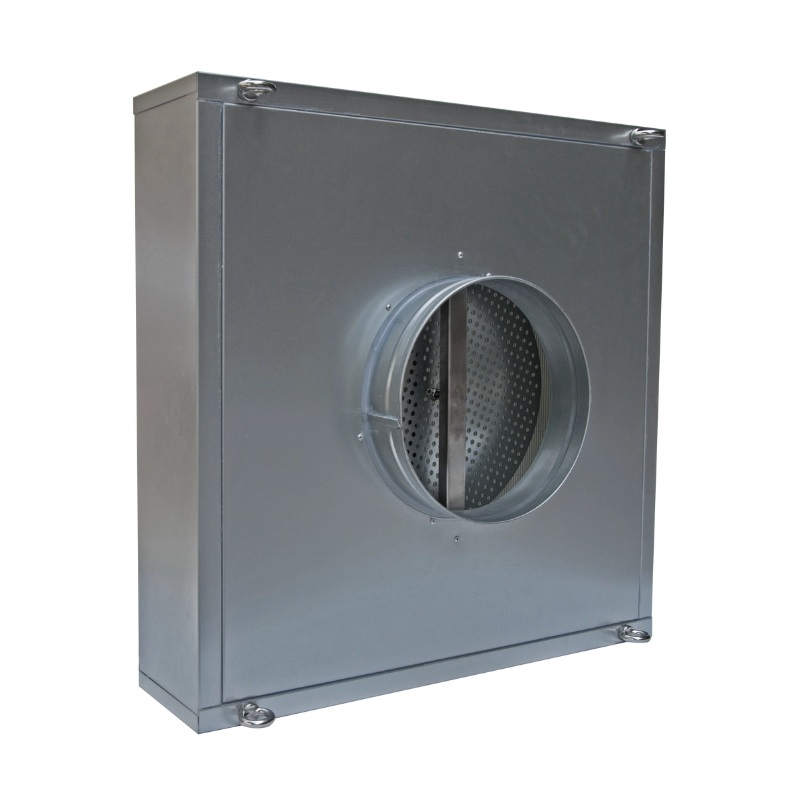

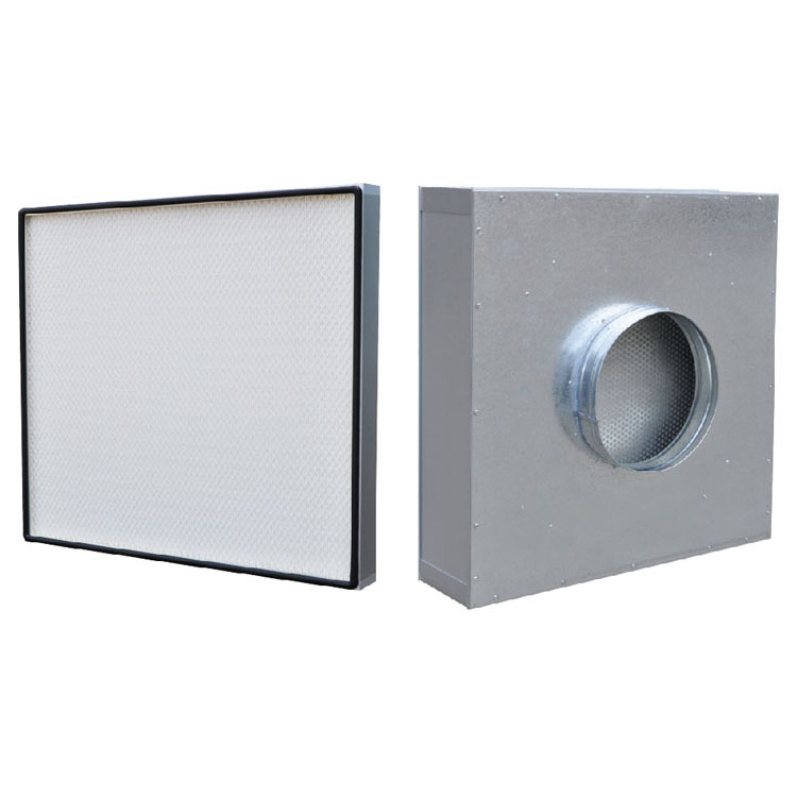

HEPA box

Designers carefully designed the diffuser plate to ensure that the airjet speed to prevent the product from create eddy current.

Learn More
china clean room

Modular rooms can be assembled, disassembled and relocated.

Learn More
Vertical Flow Clean Bench

 It helps to minimize the risk of cross-contamination from the operator's activities, ensuring the safety of both the operator and the samples or products being handled.

Learn More
Pass Through Boxes

1. Adopts polish stainless steel inside, which is flat, neat and wearable. The surface material of pass box is cold rolled steel or stainless steel. 2. Doors in two sides with mechanical or electronic interlock device enable two doors can't be in the open state at the same time. 3. Pass box with special sealing strips to guarantee the airproof.

Learn More
best air shower

The two doors cannot be opened or closed at the same time to avoid cross contamination; Has emergency stop device; Automatic door opener/closer

Learn More
Modular Clean Room

♦FREE DESIGN ♦FACTORY PRICE ♦EASY INSTALLATION ♦TIMELY AFTER-SALES SERVICE

Learn More
pass box

DOP dynamic pass box can act as an air lock to prevent high-pressure leakage into clean room

Learn More

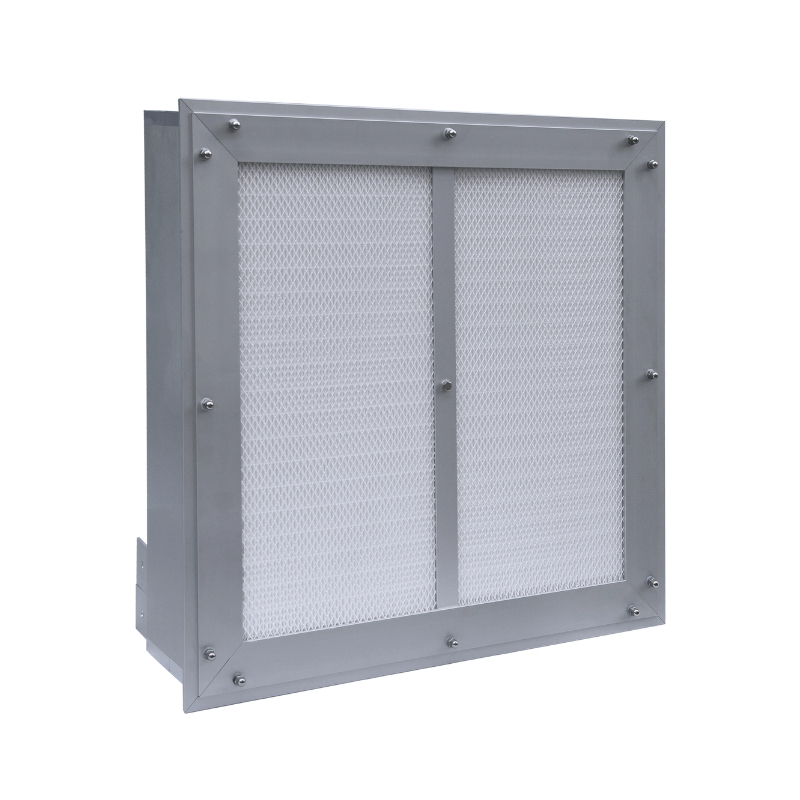

HEPA Box

This design helps distribute the air more evenly across the surface of the HEPA filter, reducing the accumulation of particles and extending the filter's lifespan.

Learn More
Vertical Flow Air Shower

The way of return air from bottom, dust directly falling as per their own natural gravity. Top of the high-speed wind blowing likes the piston movement, can take the dust away quickly by the bottom elevated floor.

Learn More

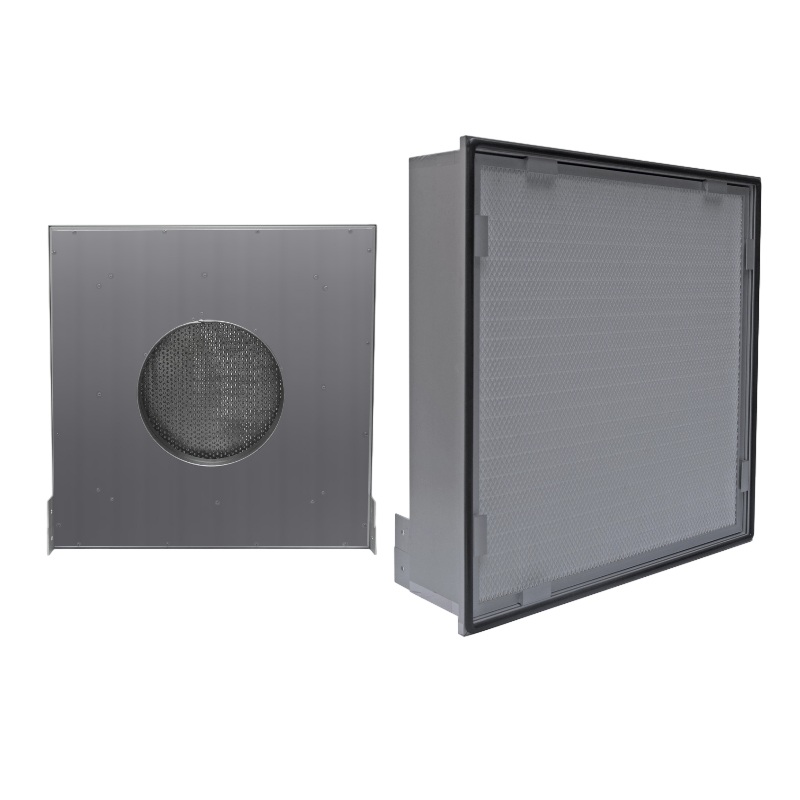

FFU Manufacturer

It is 100mm thinner than the ordinary FFU.It has the characteristics of light weight, corrosion resistance, rust prevention and beautiful appearance.

Learn More
Ultra-Clean Ceiling

Using leading resistance drain layer technology which allows reasonable airflow distribution inside the clean room , effectively guarantee the indoor cleanliness.

Learn More
Air Handling Machine

The design is for long distance air supply or discharge, which has advantages of maintenance free, little vibration, low noise and big power air supply. Hanging or floor mounting freely.

Learn More
Abnormity Air Shower

Customized design and functions for various application: customized T-shaped, L-shaped, Z-shaped, U-shaped and other shapes, also different materials and components

Learn More
Pass Box With Air Shower

Stainless steel high-speed airflow nozzles, durability, corrosion resistance, easy cleaning and maintenance, high hygiene standards, and compatibility with various disinfection agents.

Learn More
Class 100 Clean Bench

It has the advantages of small vibration, filter replacement reminder, maintenance-free, and corrosion resistance.

Learn More
Cargo air Shower

Two-doors electronic interlock to prevent cross-infection and to achieve sealing requirements, also with infrared probe, transparent window, infrared induction blowing, clear indicator light, emergency stop switch.

Learn More
air shower supplier

Intelligent control. Adjustable blowing time and interlock system. Strong airproof effect. Stainless steel nozzles at three sides and big air volume. Low noise fan.

Learn More
hepa box supplier

Adopts the gel mini-pleat HEPA filter with better sealing.

Learn More
DC fan FILTER UNIT

1.Energy Efficiency: DC FFUs consume less energy compared to AC-powered units, resulting in lower operating costs. 2.Variable Speed Control: DC FFUs allow for precise control of airflow rates, enhancing flexibility and adaptability to changing environmental conditions. 3.Quiet Operation: DC motors operate more quietly, providing a more comfortable and silent working environment. 4.Longer Lifespan: The use of quality DC motor technology ensures a longer service life, reducing maintenance and replacement costs over time.

Learn More
Horizontal Clean Bench

Adopt send-off wind system making air velocityis adjustable by touch the switch lightly, which makes the wind speed ideal status.

Learn More
EFU

EFU is used in purification equipment to help them purify the air and ensure a clean environment.

Learn More
Sampling Booth

Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.

Learn More
Automated Handwashing Systems

Automatic control, complete the operation of hand washing and drying automatically ; Can reduce the drying time of rub hands when drying

Learn More
Disposable HEPA Filter with Hood

Disposable filters help prevent the potential spread of contaminants during filter handling and replacement. They do not require regular cleaning or extensive maintenance, there is a reduced need for labor and associated costs.

Learn More
Air Filter Wall

Optional: Pleated air filter wall, box air filter wall, v-bank air filter wall.

Learn More
Industrial Carbon Filter

Used high quality active felt or activated carbon fiber, to meet the special needs of environment

Learn More

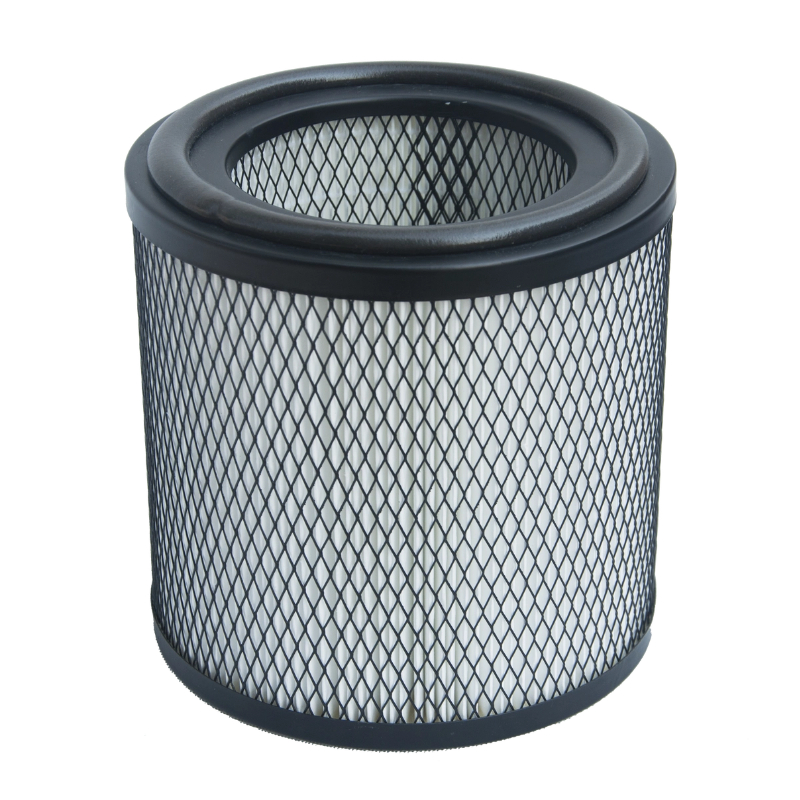

Industrial Air Filter

All air inlet and outlet at 360 degrees, forming a better uniform filtration and more stable filtration efficiency

Learn More

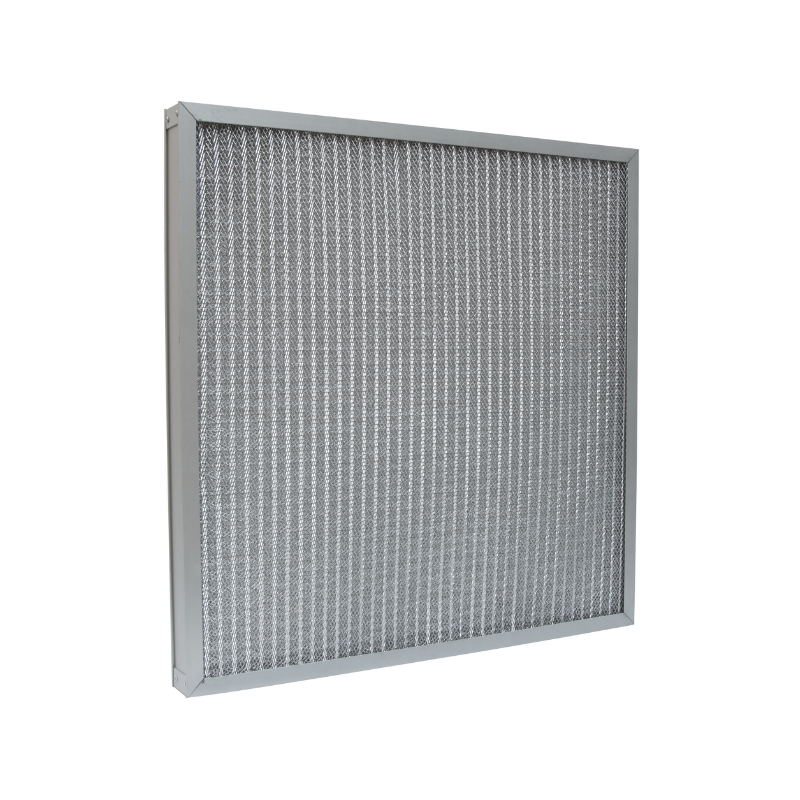

Stainless Steel Pleated Filter

Reused after cleaning by water Reused of frame

Learn More
HEPA Filter With DOP Port

DOP HEPA filters are designed to meet strict industry standards and undergo rigorous testing to ensure consistent and reliable performance.

Learn More
Activated Carbon FiLTER

Activated carbon has a large surface area and can effectively adsorb and remove various contaminants, including odors, volatile organic compounds (VOCs), and harmful gases.

Learn More
activated carbon bag filter

Combine the advantages of bag filter and activated carbon to increase the filtration area while effectively removing particulate matter and harmful gases in the air.

Learn More
PRE Filter

Washable , Replaceable filter media. High strength, large air volume, small resistance, high capacity of dust.

Learn More

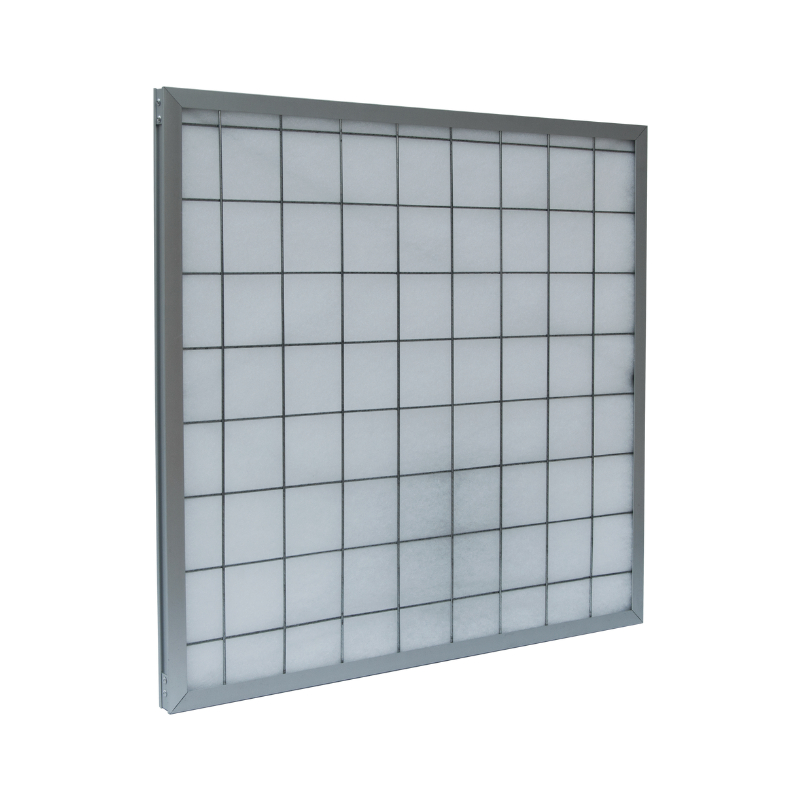

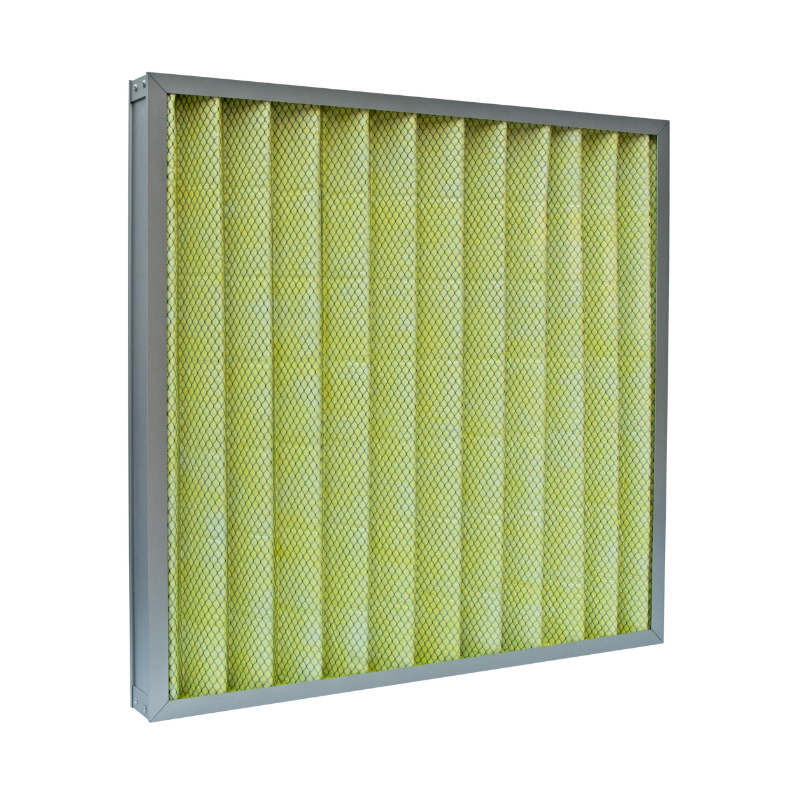

pleated filter

Surface mesh used by rust treatment process, good appearance and durable

Learn More

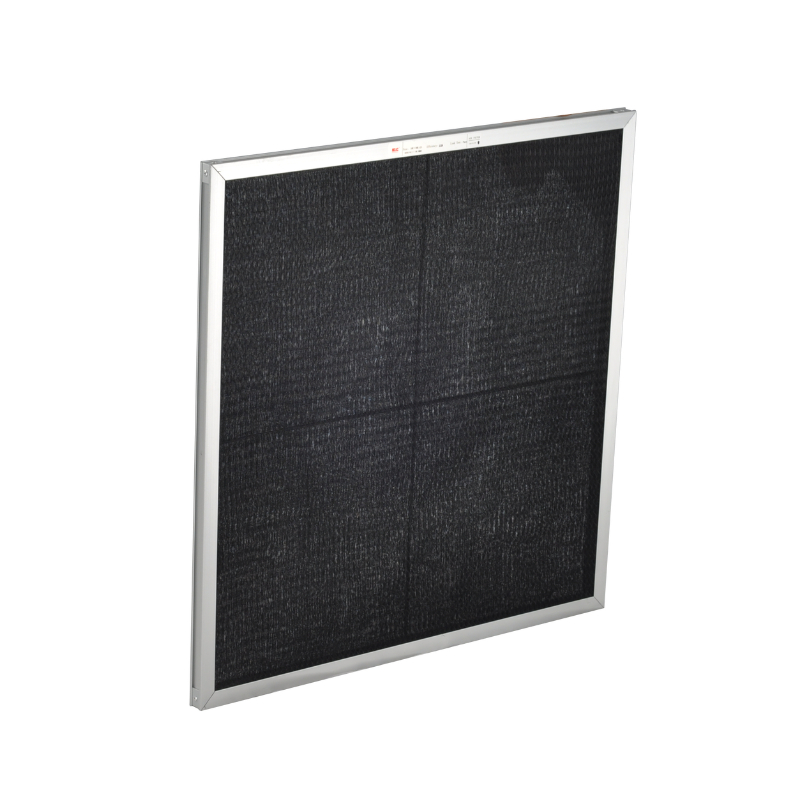

12x12x1 nylon filter

Nylon net filter has less resistance, long lifespan. Can repeat cleaning, high performance with cheap cost.

Learn More
Replaceable HEPA Filter With Hood

It can be easily removed and replaced with a new filter, minimizing downtime and maintaining optimal filtration efficiency.

Learn More
washable Mesh Air Filters

Suitable for acid-based and high humidity-resistance environment.

Learn More
KLC filter

Simple structure, wide range of applications, and high cost performance ratio.

Learn More
Pleated Primary Filter

The filter is designed to deliver consistent and reliable filtration performance even under extreme heat conditions, providing clean and purified air or gas.

Learn More

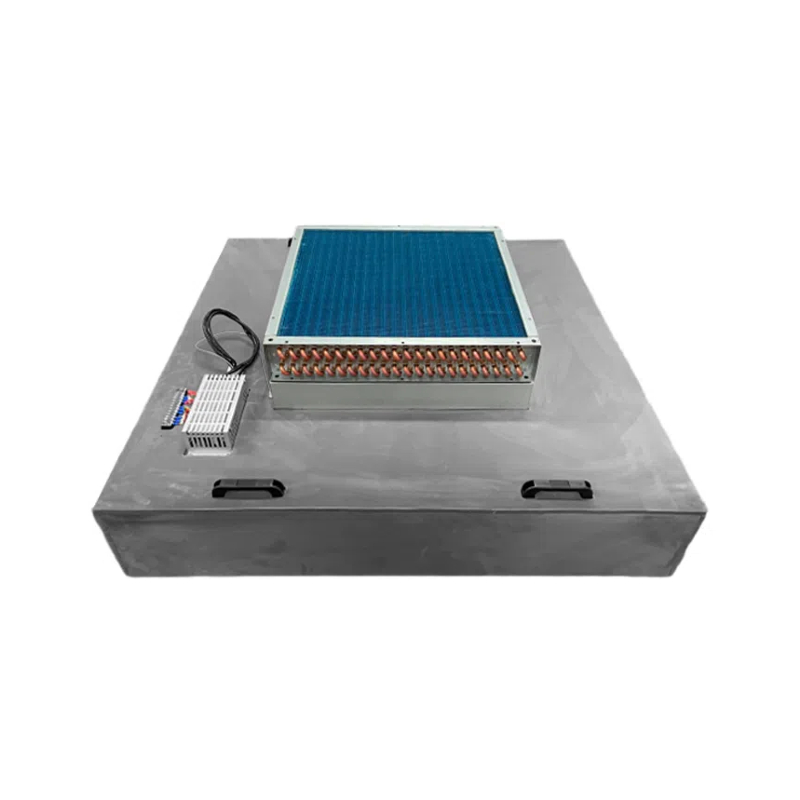

FFU With Cooling Coil

1. Improved Air Quality: The FFU filters out airborne particles, ensuring clean and fresh air in the environment. 2. Optimal Temperature Control: The integrated cooling coil helps maintain a comfortable temperature, enhancing occupant comfort and productivity. 3. Energy Efficiency: The system is designed operate efficiently, reducing energy consumption and operational costs. 4. Vers Application: FFU with Cooling Coil can be used in various settings, such as cleanrooms, laboratories, and manufacturing facilities, providing a flexible solution for precise air filtration and temperature control.

Learn More
Hood DOP HEPA Filter

◎Light weight and thin ◎Independent research and development, patented products ◎Double turn frame,threaded fastening connection, easy to install and replace ◎Gel-glue sealing, high efficiency and dependability

Learn More
ULPA Filter

Highly resist to chemical corrosion such as acid and alkali. Suitable for some occasions that have high requirements for impurity filtration and special process requirements.

Learn More
lab cleanroom

1.All styles can be customized, and a variety of materials are available such as: tempered glass, sandwich panels, PVC curtains, etc. 2.Years of customization experience can provide the most suitable customized solutions. 3.Can provide one-stop clean room solutions, produce filters and clean room equipment by ourselves, reduce costs and save time.

Learn More
Desktop clean bench

1. Open uniform air exhaust with large area 2. Portable,compact and flexible design 3. Air volume adjustable system on the top with high efficiency and low consumption 4. Multi-grade electric safety protection system 5. We have a professional design team, any style and size can be customized

Learn More
laminar flow clean bench

No vibration Desktop with drawer for easy storage Seamless connection to ensure cleanliness. This kind of clean bench could achieve to 10 class in workarea according to customers’ requirement.

Learn More

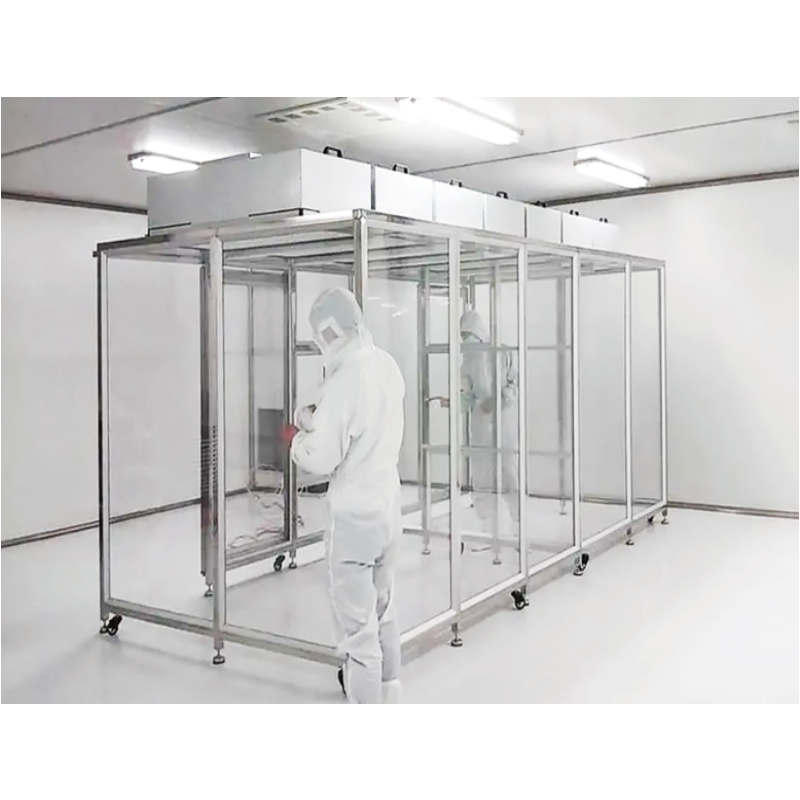

cleanroom factory
