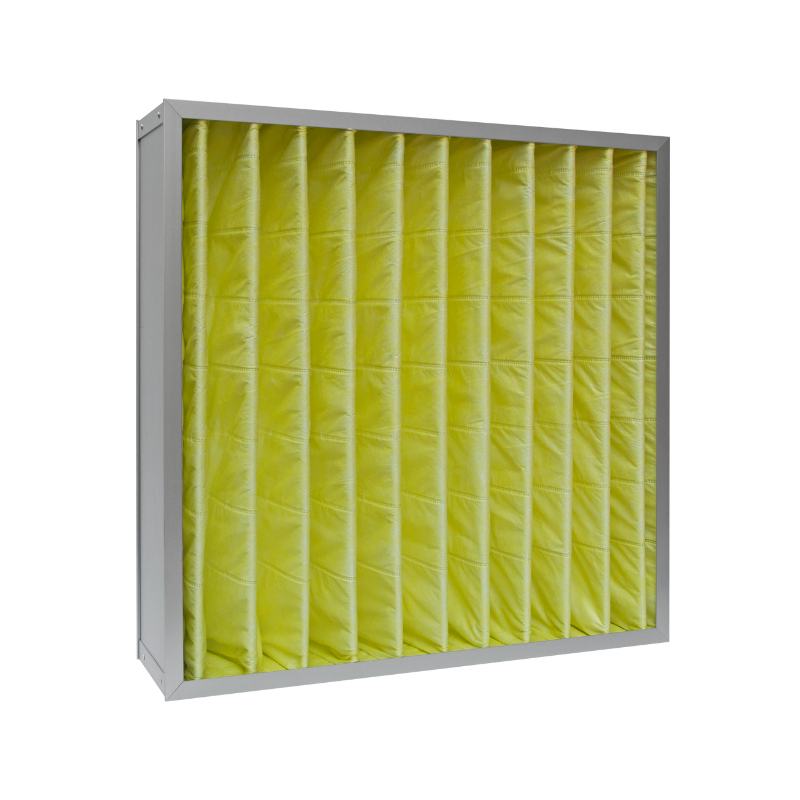

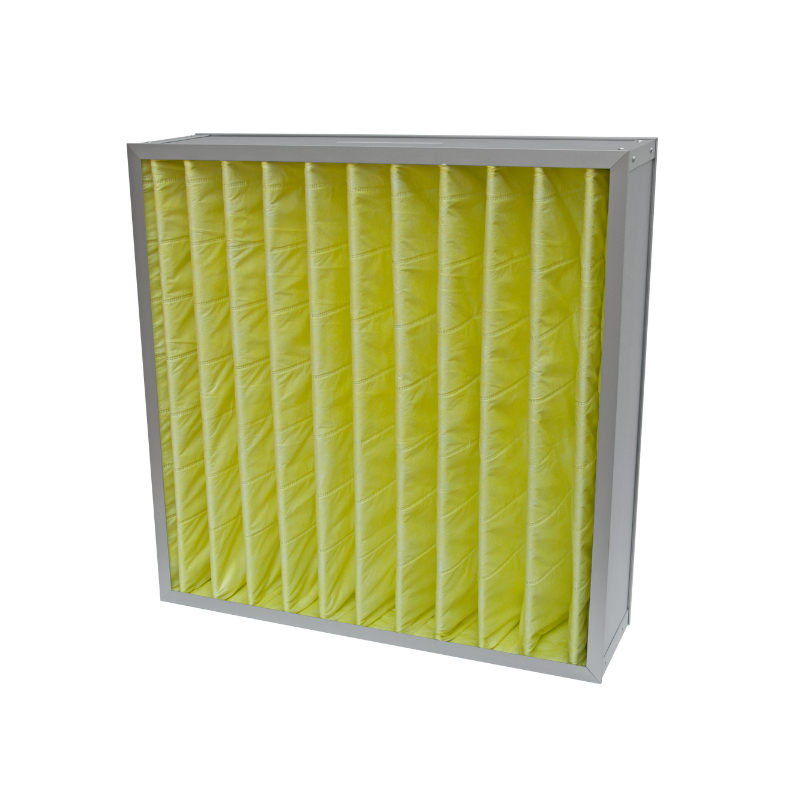

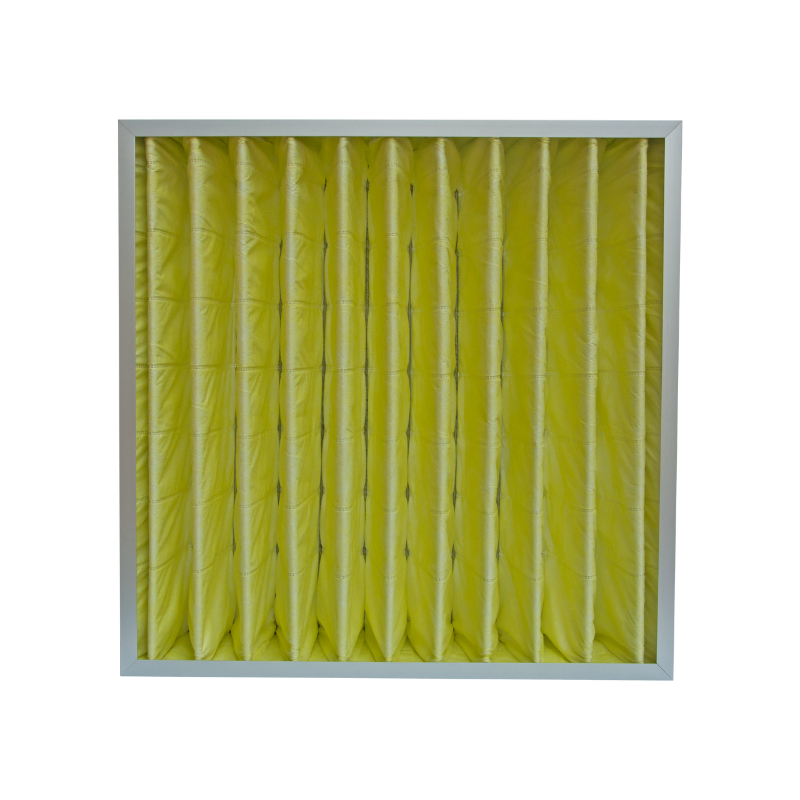

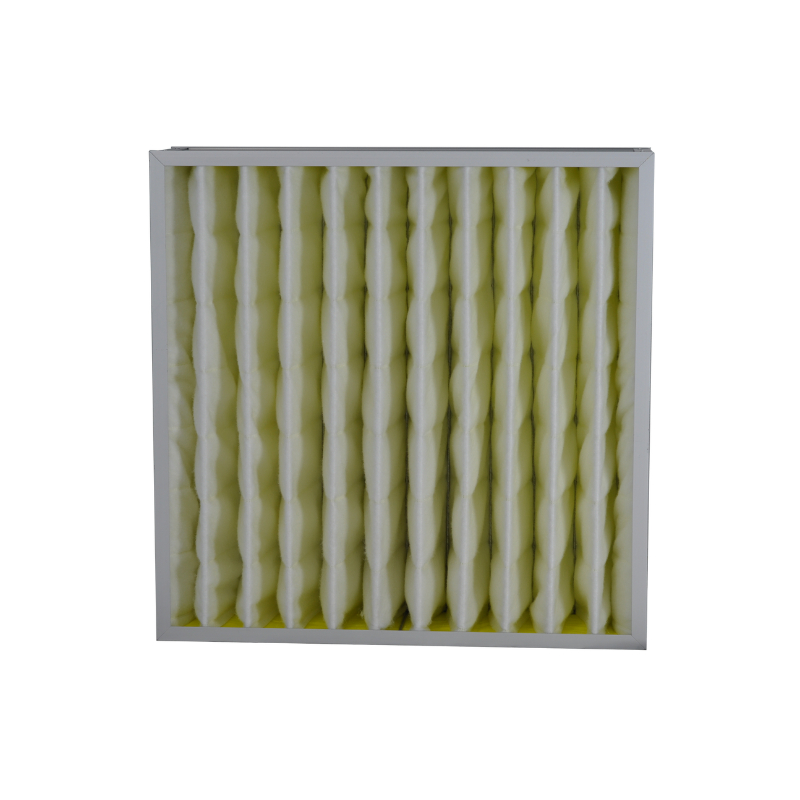

Strong Structure Medium Box Type Filter Dust Filter Box

Strong Structure Medium Box Type Filter Dust Filter Box

Simple structure, wide range of applications, and high cost performance ratio.

  • Item NO. :

    K45
  • Optional Thickness :

    96~292 mm
  • Frame :

    Aluminum / GI
  • Media :

    Synthetic fiber
  • Efficiency :

    F5 / F6 / F7 / F8 / F9
  • Max Temperature :

    50℃
  • Max Humidity :

    100%

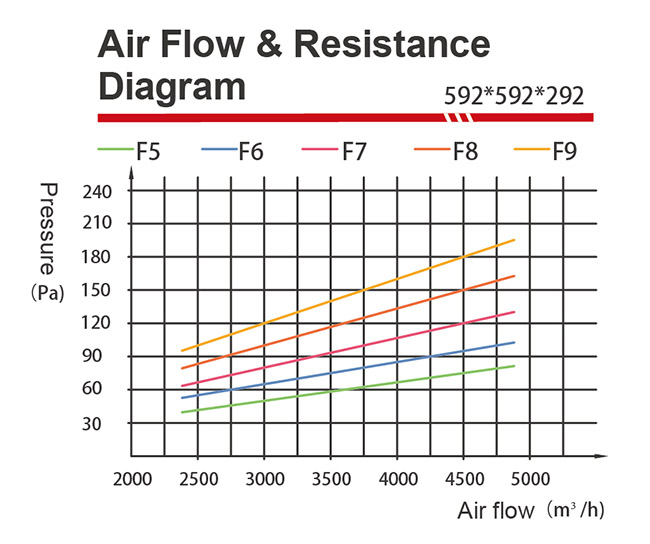

air flow resistance piagram



Product feature

◎ Box type, strong structure

◎ Large dust holding capacity

◎ 100% factory inspection

◎ Large air flow and high efficiency

◎ Simple structure, wide application and high performance cost

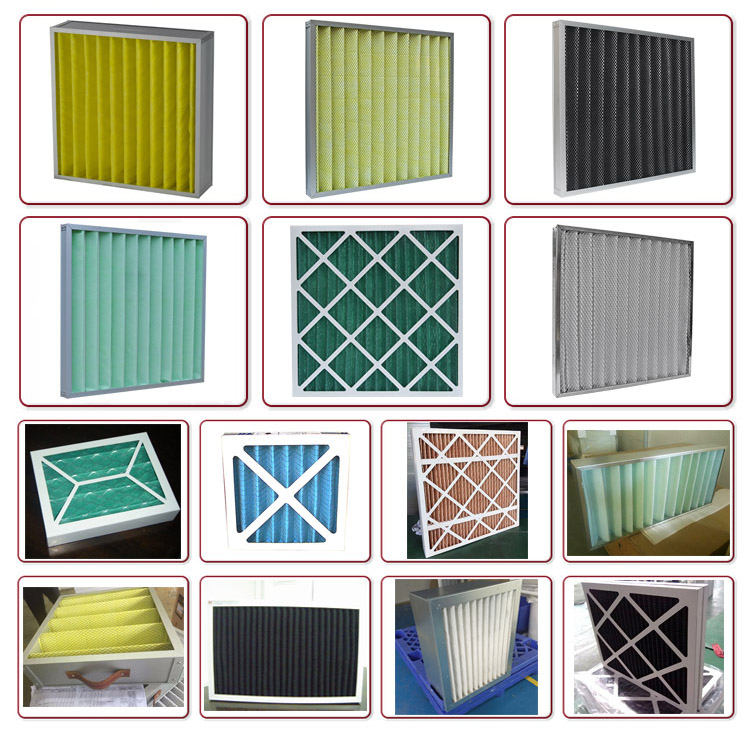

Custom Design

klc air filter





Product Specification

Model NO.

Actual Size

 HxWxD (mm)

Air Flow

(m³/h)

Media Area

Flow (m²)

Velocity

(m/s)

K45-001 592*287*150 800 1.10 1.31
K45-002 592*490*150 1200 1.89 1.15
K45-003 592*592*150 1500 2.28 1.18
K45-004 592*287*220 1050 1.63 1.72
K45-005 592*490*220 1800 2.78 1.72
K45-006 592*592*220 2200 3.36 1.73
K45-007 592*287*292 1400 2.16 2.29
K45-008 592*490*292 2400 3.69 2.30
K45-009 592*592*292 3000 4.46 2.37





Application

Medium filtration of HVAC system and some factories like electronic, precision instrument, food processing, etc.
