1. Adopts polish stainless steel inside, which is flat, neat and wearable. The surface material of pass box is cold rolled steel or stainless steel.
2. Doors in two sides with mechanical or electronic interlock device enable two doors can't be in the open state at the same time.
3. Pass box with special sealing strips to guarantee the airproof.
Item NO. :
PBGCabinet material :
Cold rolled steel with powder coated / Stainless steelInternal material :
Sand light stainless steelThickness of material :
1.0mm / 1.2mmPower supply of electronic interlock / UV lamp :
220V/50Hz
Product information
Pass box is a kind of assistant equipment for clean room. It is mainly used to pass the small articles between clean room and unclean room or two clean rooms. Because of interlocking system, it can reduce the cross pollution.
Function
It has the function of air valve to prevent high pressure to leak in the clean room.
Characteristic
1. Adopts polish stainless steel inside, which is flat, neat and wearable. The surface material of pass box is cold rolled steel or stainless steel.
2. Doors in two sides with mechanical or electronic interlock device enable two doors can't be in the open state at the same time.
3. Pass box with special sealing strips to guarantee the airproof.

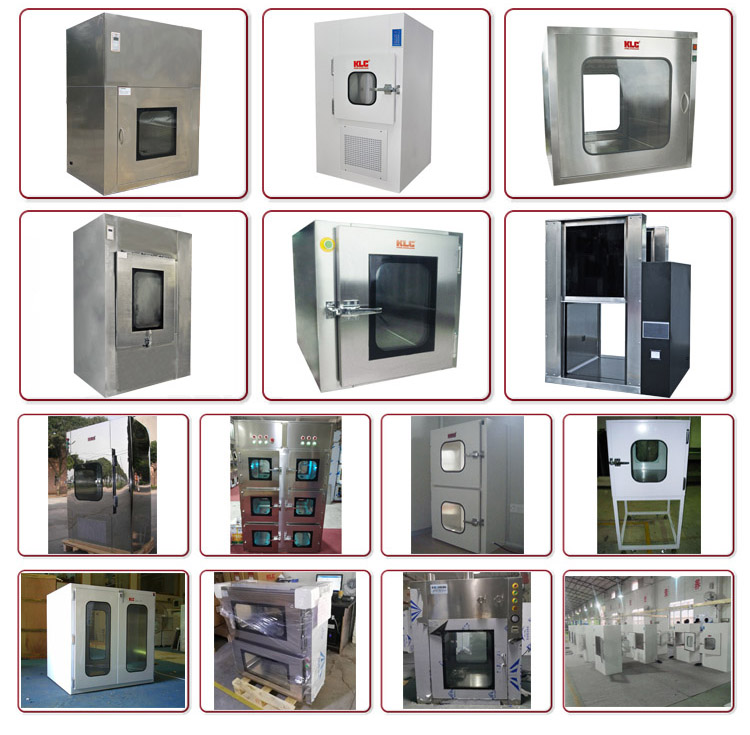

Custom Desigm

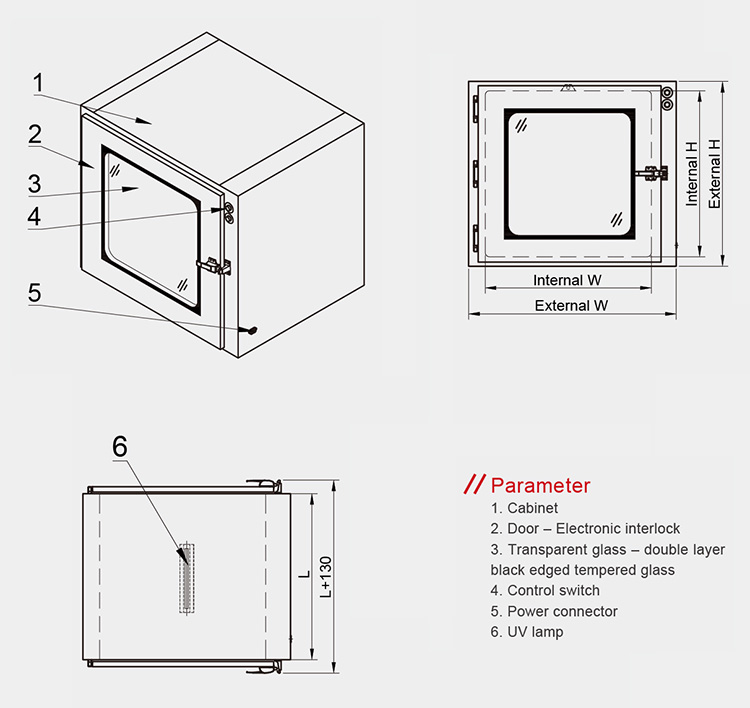

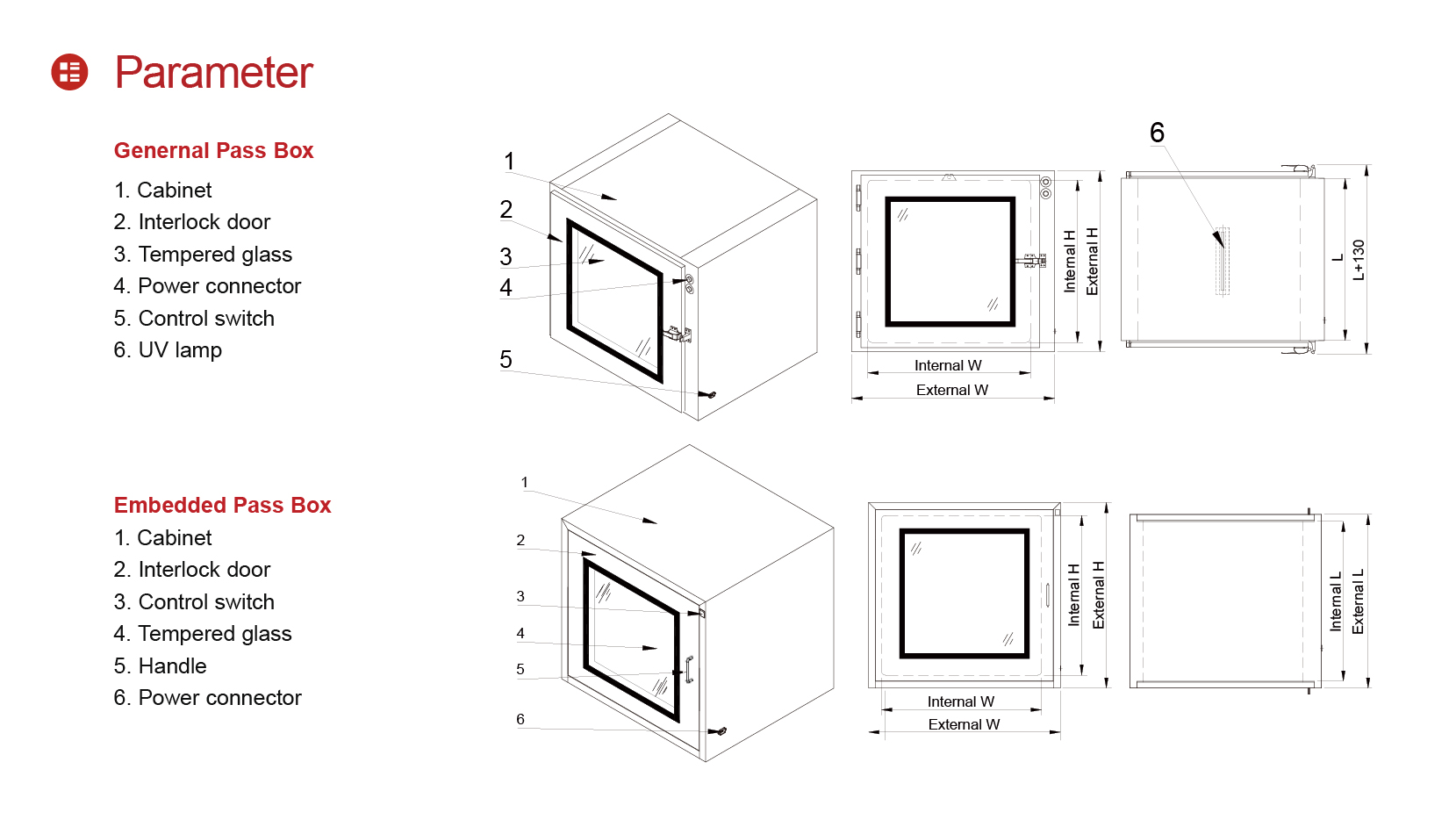

Product Specification
Item | General Pass Box | Embedded Pass Box | ||||
Model | PBG-500 | PBG-600 | PBG-800 | PBE-500 | PBE-600 | PBE-800 |
Material | External: Powder coated steel / Stainless steel; Internal: Stainless steel T1.2 | |||||
External Size (WxLxHmm) | 700x500x590 | 800x600x690 | 1000x800x890 | 700x570x630 | 800x670x730 | 1000x870x930 |
Internal Size (WxLxHmm) | 500x500x500 | 600x600x600 | 800x800x800 | 500x500x500 | 600x600x600 | 800x800x800 |
Interlock system options | Mechanical interlock / Electronic interlock | Mechanical interlock / Electromagnetic interlock | ||||
Glance window | Cold rolled steel with powder coated / stainless steel | |||||
UV lamp (uW/cm2) (optional) | ≥70 | |||||
Power supply (V/Hz) (if equipped with electronic interlock or UV lamp) | 220/50 |
Application
Widely used in the clean environment, such as micro-electronics, laboratory, national defense, precise instrument, biopharming, opto-electronics, aseptic packaging, etc.
