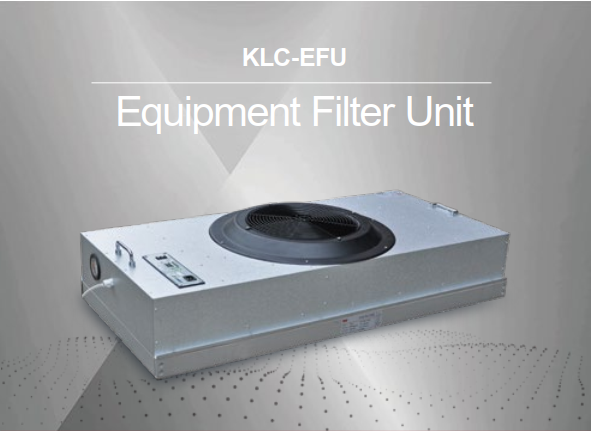

Equipment Filter Unit / EFU for air purification equipment

Equipment Filter Unit / EFU for air purification equipment

EFU is used in purification equipment to help them purify the air and ensure a clean environment.

  • Item NO. :

    KLC-EFU
  • Cabinet material :

    Galvalume / aluminum / stainless steel
  • Control method :

    Single control / computer small group control / touch screen small group control / computer group control
  • Fan :

    Low-energy, silent and thin fan
  • Air velocity(m/s) :

    0.45±20%

The Equipment Filter Unit is designed to capture unwanted substances, such as dirt, dust, or microorganisms, ensuring that the processed material meets the required quality standards. It plays a crucial role maintaining the efficiency and longevity of equipment by preventing damage or clogging caused by foreign particles.It can be used in a variety of air purification equipment, such as: movable clean rooms, clean benches etc.



Product Features

1.Ultra-low energy consumption, low noise

The unique design inside the cabinet is matched with a high-quality, low-energy, silent and thin fan to achieve the effect of low energy consumption and low noise.

2.High-quality board

The cabinet can be made of galvanized zinc plate, stainless steel plate or aluminum plate, and the thickness can be as low as 135mm.

3.Easy to install

The structure is light and handy, the installation is flexible and convenient, and it can be installed horizontally or vertically to meet the installation requirements under different conditions.

4.Multiple control methods

It can realize single manual control or multiple group monitoring. From small-scale specific needs to large-scale integrated system
requirements, it can provide suitable EFU control methods and monitoring systems.





Model

EFU-1

EFU-2

Size (WxLxHmm) 570x1170x240 1170x1170x240
Air chamber material Galvalume / aluminum / stainless steel
Air Flow (m³/h) 1000~1100 2200~2300
Air velocity (m/s) 0.45 ± 20%
Total pressure (Pa) 230 230
Power (W) 80 140
Weight (kg) 25 45
Noise dB (1m below the HEPA filter) ≤54 ≤56
Vibration (mm/s) 0.2~0.7
Power supply AC 220V  50/60Hz
HEPA filter Size (WxHxDmm) 570x1170x50 1170x1170x50
Efficiency 99.99% 0.3μm
Frame High quality anodized aluminum

Initial pressure

drop

110Pa@0.45m/s±15%
Gasket EVA / PU foam
