Intelligent control. Adjustable blowing time and interlock system. Strong airproof effect. Stainless steel nozzles at three sides and big air volume. Low noise fan.
Item NO. :
ASGBlow way :
Single blow/Double blow/Three blow/surrounded blow/Vertical blowSS nozzle diameter :
ø25mmMaterial :
powder coated steel/stainless steelController :
Electronic control panel/ PLCPower supply :
220V/380V
Humanity science and technology
Intelligent programmable control, two-door electronic interlock, infrared sensing blow drench, clear indicator, emergency stop switch. Reflects stronger professional, convenience and security
Quality matetrial
1. Use the high quality cold-rolled steel sheet with epoxy powder coated, wear-resisting ground steel plate, stainless steel nozzle, have good corrosion resistance and rust resistance.
2. Use transparent window and LED electronic lighting, better lighting and less energy.

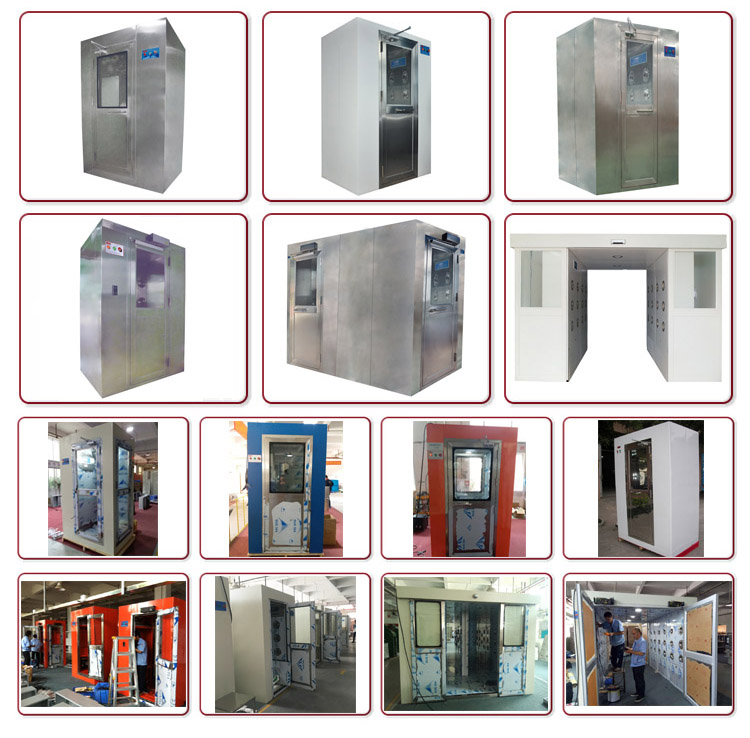

Custom Design

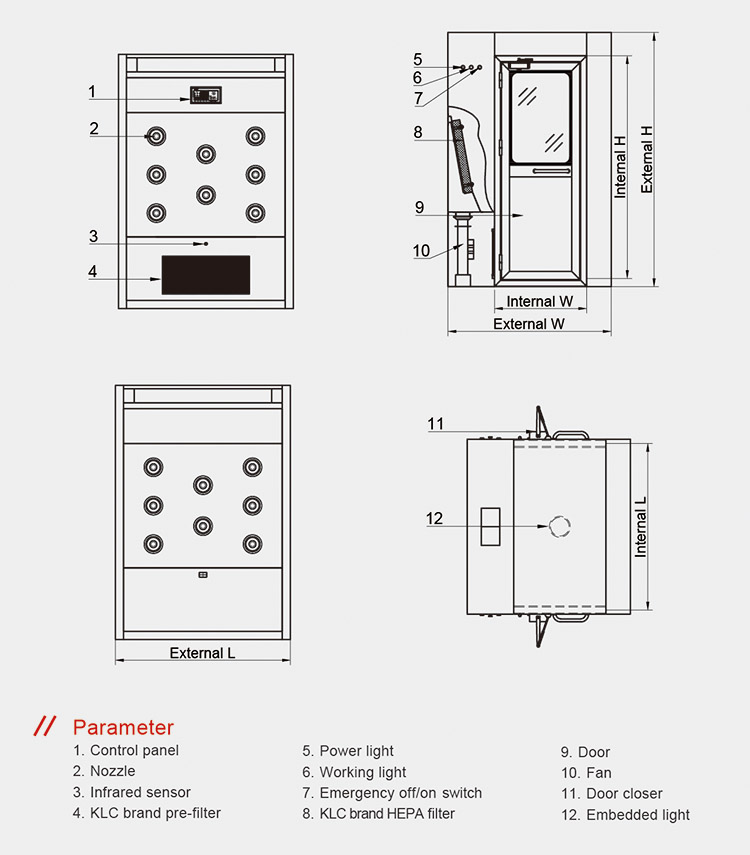

Product Specification
Item | Standard Air Shower with Three Sides Blow | Standard Air Shower with Two Sides Blow | ||||||
Model | ASG-1150 /3/1 |
ASG-1150 /3/2 |
ASG-1150 /3/3 |
ASG-1150 /2/1.5 |
ASG-1150 /2/3 |
ASG-1300 /2/1.5 |
ASG-1300 /2/3 |
|
Material | External: epoxy power coated steel or stainless steel 304; Internal: epoxy power coated steel or stainless steel 304; Baseplate: stainless steel 304 | |||||||
External size (W*L*Hmm) |
1150*1000 *2150 |
1150*2000 *2150 |
1150*3000 *2150 |
1150*1500 *2150 |
1150*3000 *2150 |
1300*1500 *2050 |
1300*3000 *2050 |
|
Internal size (W*L*Hmm) |
800*930 *1950 |
800*1930 *1950 |
800*2930 *1950 |
800*930 *1950 |
800*1930 *1950 |
800*1430 *1950 |
800*2930 *1950 |
|
Door width (Wmm) |
700 | 700 | 700 | 700 | 700 | 700 | 700 | |
Nozzle in stainless steel (pc) |
16 | 32 | 48 | 16 | 32 | 16 | 32 | |
Nozzle wind speed (m/s) |
≥25 | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | |
Nozzle distribution | 12pcs at two sides, 4at top |
24pcs at two sides, 8pcs at top |
36pcs at two sides, 16pcs at top |
16pcs at two sides | 32pcs at two sides | 16pcs at two sides | 32pcs at two sides | |
Nosie dB (1m from equipment) |
<65 | <65 | <65 | <65 | <65 | <65 | <65 | |
LED lamp (11W/pc) |
1 | 2 | 3 | 1 | 2 | 1 | 2 | |
Fan | Power supply (V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
Power/set (W) | 750 | 750 | 750 | 750 | 750 | 550 | 550 | |
Quantity/Set | 1 | 2 | 3 | 1 | 2 | 2 | 4 | |
Air flow (m3/h) | 2500 | 5000 | 7500 | 2500 | 5000 | 5000 | 10000 | |
Size of HEPA filter (W*H*Dmm) | 630*630 *69 |
630*630 *69 |
630*630 *69 |
630*915 *69 |
630*915 *69 |
630*915 *69 |
630*915 *69 |
|
Size of pre-filter (W*H*Dmm) |
775*380 *17 |
775*380 *17 |
775*380 *17 |
775*380 *17 |
775*380 *17 |
775*380 *17 |
775*380 *17 |
|
Power supply (W) -Door closer |
810 | 1620 | 2430 | 810 | 1620 | 1160 | 2270 | |
European style (better inner height) |
External height size: 2250mm, Internal height size: 2050mm |
Operating principle
The working principle of air showers involves the use of a controlled high-velocity airflow to remove contaminants from personnel or objects before they enter a cleanroom or controlled environment.
When an individual or object enters the air shower, the entry door closes, and a powerful fan or blower activates, creating a high-velocity airflow within the enclosed chamber. The air is typically filtered through high-efficiency particulate air (HEPA) filters or ultra-low particulate air (ULPA) filters to remove particles as small as 0.3 micrometers.
Strategically placed nozzles or air diffusers release jets of filtered air in a concentrated manner. These air jets are directed towards the person or object from all directions, ensuring effective removal of contaminants from all surfaces.
Application
Semiconductor factory, microelectronics factory, biological pharmaceutical factory, etc.
