Hvac System Air Handling Unit / AHU Air Handling Machine

Hvac System Air Handling Unit / AHU Air Handling Machine

The design is for long distance air supply or discharge, which has advantages of maintenance free, little vibration, low noise and big power air supply. Hanging or floor mounting freely.

Designed to deliver the easiest and quick protection to users by effectively controlling & eliminating all types of particulate dust, microbial and chemical pollutants from air stream, making the ambient suitable for users with reduced risk of airborne infection & molecular pollutants. The air handling unit shall be self-sufficient for recirculation, positive or negative pressurization applicaitons with in-built low noise fan assembly and controls

As additional to indoor fresh air intake , can be easily fitted to existing fresh air system or mixed (fresh & recirculating ) air system.

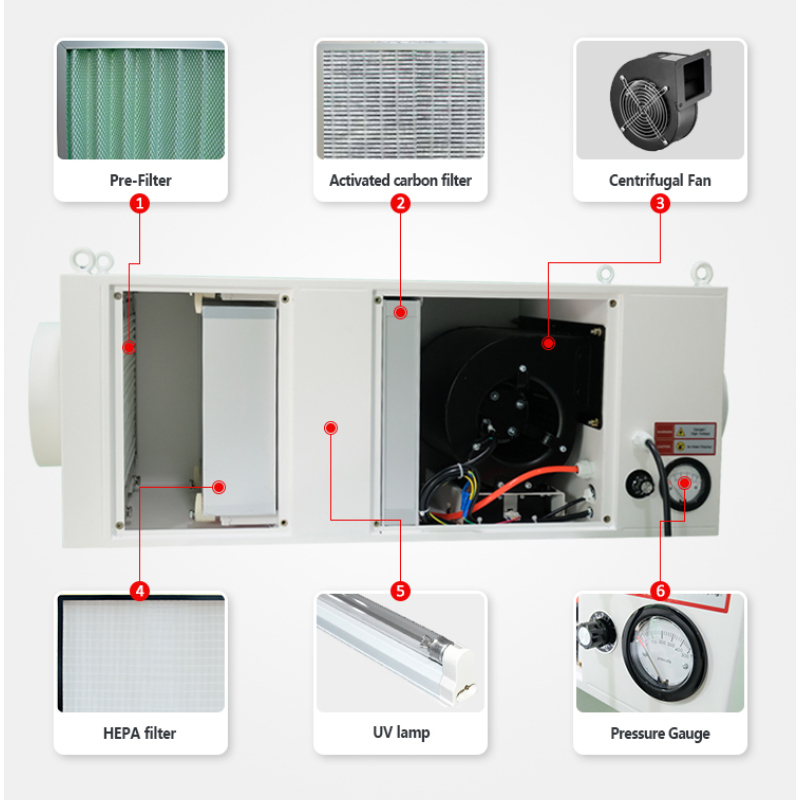

Air Handler





Product Specification





Item

Air Handling Unit

        Model
FAC-450
FAC-700
        Material
Cold rolled steel with powder coated / Stainless steel
Dimension(WxHxL)
328x338x800mm
328x338x800mm
Air Flow Capacity
450 m³/h
700 m³/h
Coverage area
24 ~ 42 m²
33 ~ 60 m²
Fan
EC Centrifugal Fan
EC Centrifugal Fan
Efficiency
99.99%@0.3μm
99.99%@0.3μm
Noise (equipment edge)
≤65 dB
≤65 dB
Power supply
220~240V/50Hz 1Phase
220~240V/50Hz 1Phase

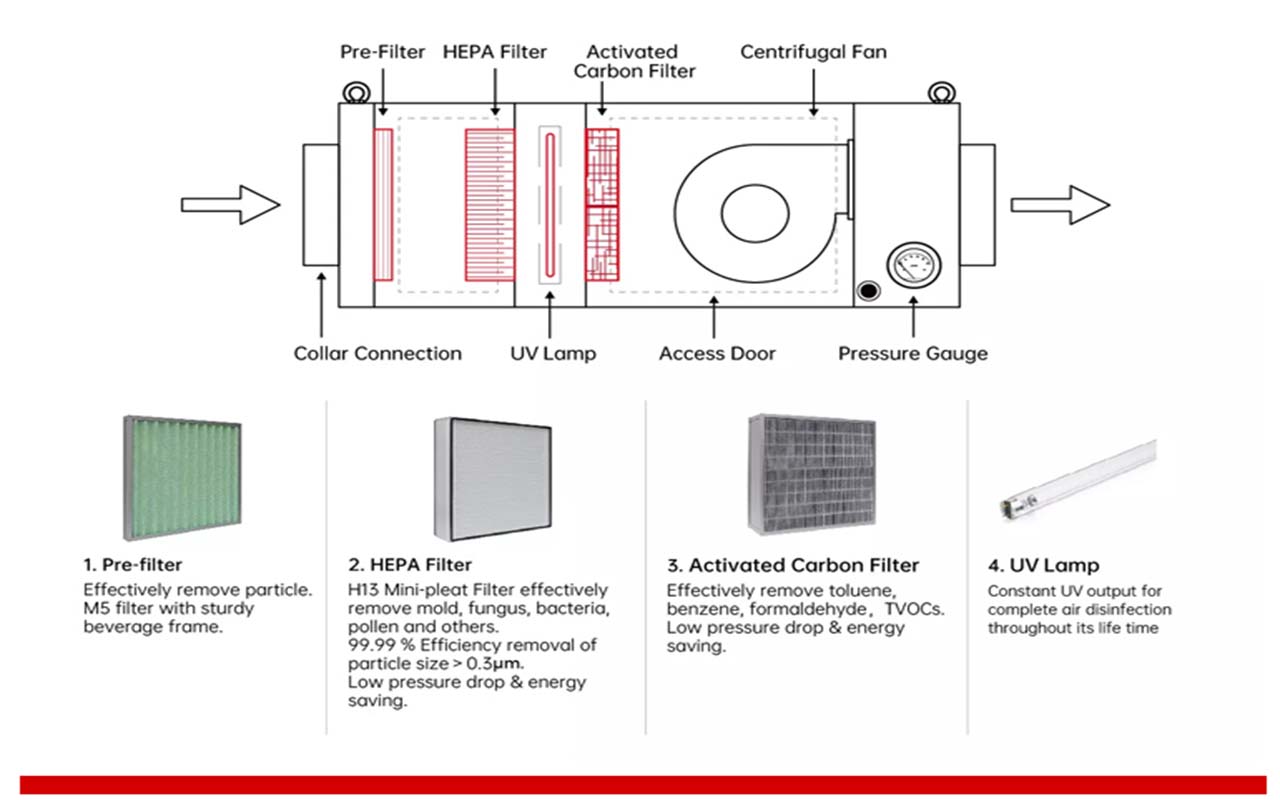

Air Handling System







Application

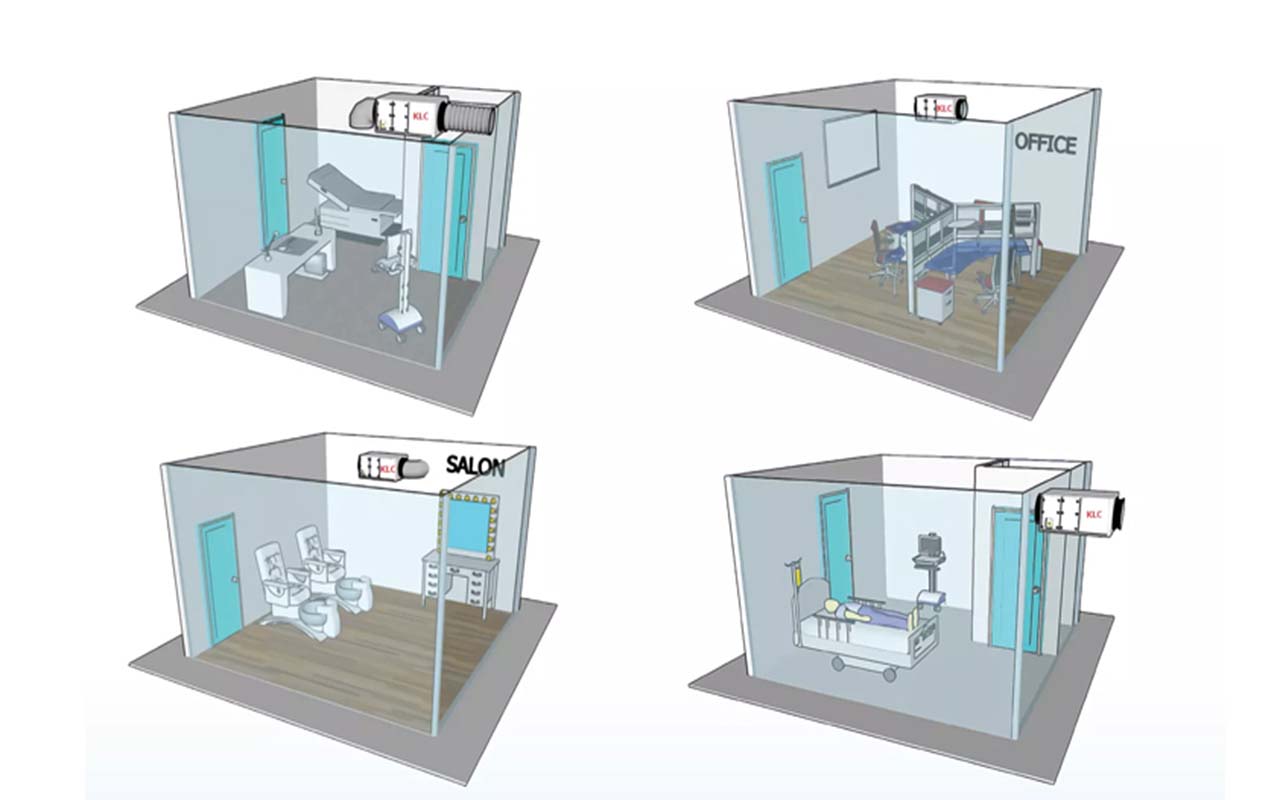

Used in laboratory, operating room, biopharmaceutical, LED lights, circuit boards, microelectronics, medical industry, food processing and other clean fresh air demanding work enviornment;

Also widely used in civil construction of the ventilation system, be applied to the housing building plus wind and equiblast of fire control system, purification air pressurizing and supplement and other occasion.
