New Design Horizontal Clean Bench Laminar Flow Cabinet

New Design Horizontal Clean Bench Laminar Flow Cabinet

Adopt send-off wind system making air velocityis adjustable by touch the switch lightly, which makes the wind speed ideal status.

  • Item NO. :

  • Cabinet material :

    powder coated steel/stainless steel
  • Purification class :

    class 100 / ISO 5
  • HEPA efficiency :

  • Power supply :

  • Table-board material :

    Sand polished stainless steel

Horizontal Clean Bench


Product information

This is a beautiful local clean room equipment and the size of work area can reach up to 1430x620x575mm. The cabinet adopts cold rolled steel or stainless steel to ensure the best ability to prevent rust or corrode. Meantime, the clean class can reach 100 rank.



Product feature

1. High clean class, low noise, cabinet and support can be dismantled or removed. Also, it can connect to assembling line.

2. Adopt protective glass (removable) to provide enclosed environment for working region, and it's also beneficial to reduce air pollution in the idle time.


Custom Design

klc Clean Bench

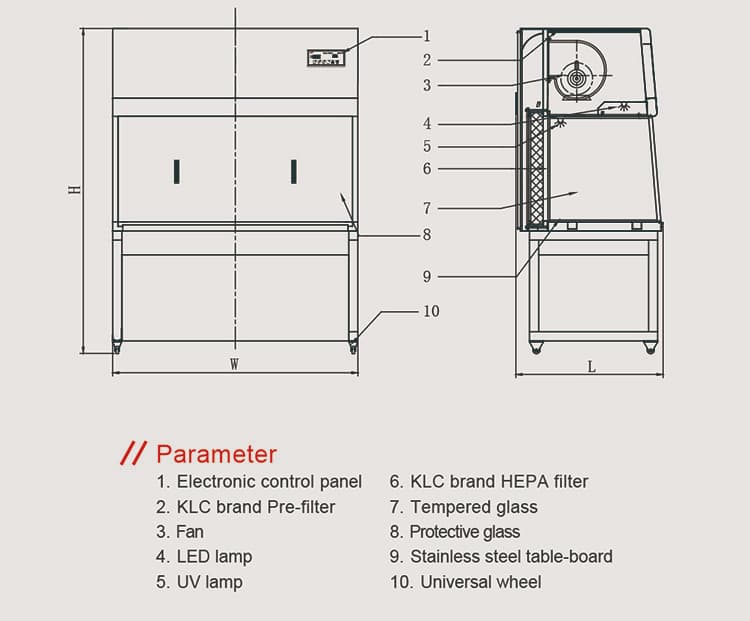

Product Specification


Big Clean Bench

for Two Person

Small Clean Bench

for Two Person

Clean Bench

for One Person

Model CBHN-1 CBHN-2 CBHN-3
External Size (WxLxHmm) 1090x850x1800 1340x850x1800 1590x850x1800
Internal Size (WxLxHmm) 930x620x600 1180x620x600 1430x620x600


The cabinet is powder coated steel or stainless steel

 the table-board is sand light stainless steel

Purification rank

(ISO14644-1 standard

100 100 100
Wind Velocity (m/s) 0.25 ~ 0.4 m/s 0.25 ~ 0.4 m/s 0.25 ~ 0.4 m/s
Noise dB (equipment edge) ≤60 ≤60 ≤62
Illumination (≥1ux) 300LX 300LX 300LX
Power (W) 220 220 240
Power supply (V/Hz) 220/50 220/50 220/50
LED standard (W×PC)  18×1 18×1 36×1




Widely used in the need of local purification, such as laboratory, operating room, biopharming, opto-electronics, micro-electronics, Hard disk manufacture, etc.
