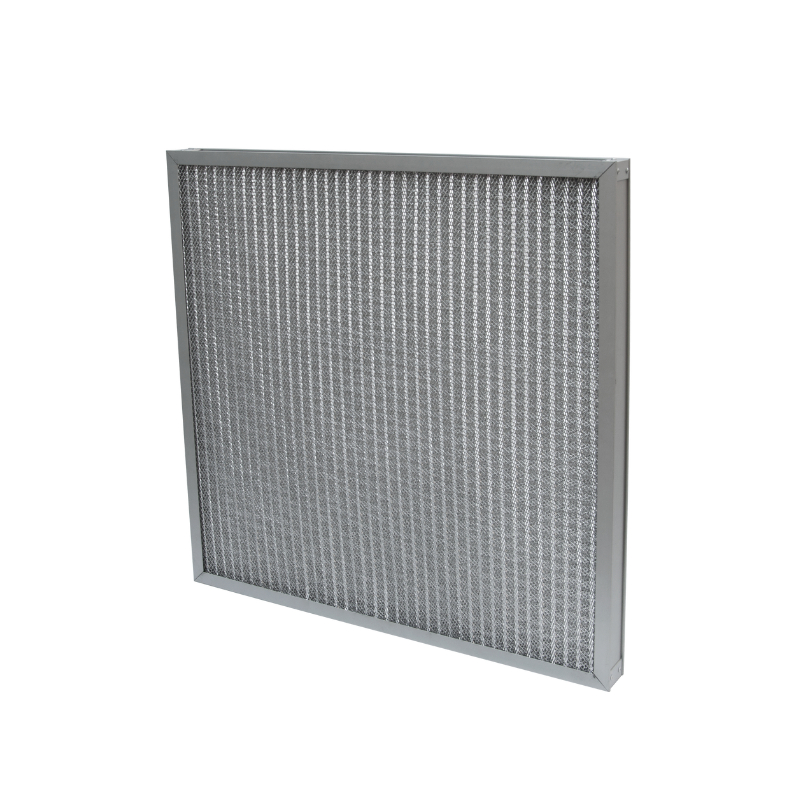

Aluminum Wave / Stainless Steel Wave Metal Mesh Air Filter

Aluminum Wave / Stainless Steel Wave Metal Mesh Air Filter

Suitable for acid-based and high humidity-resistance environment.

  • Item NO. :

    K514
  • Optional Thickness :

    10~50 mm
  • Frame :

    Aluminum / GI / SUS
  • Media :

    Aluminum wave / Stainless steel wave
  • Max Temperature :

    300℃
  • Max Humidity :

    100%
  • Face guard :

    Square mesh / Grid mesh / SUS mesh



custom washable air filters

Product feature

◎ Washable

◎ Large air flow and low initial resistance

◎ 100% factory inspection

◎ Long lifespan

◎ Combined by media with different pleat height to reduce media gap which used for high efficiency

◎ Suitable for acid-based and high humidity-resistance environment.

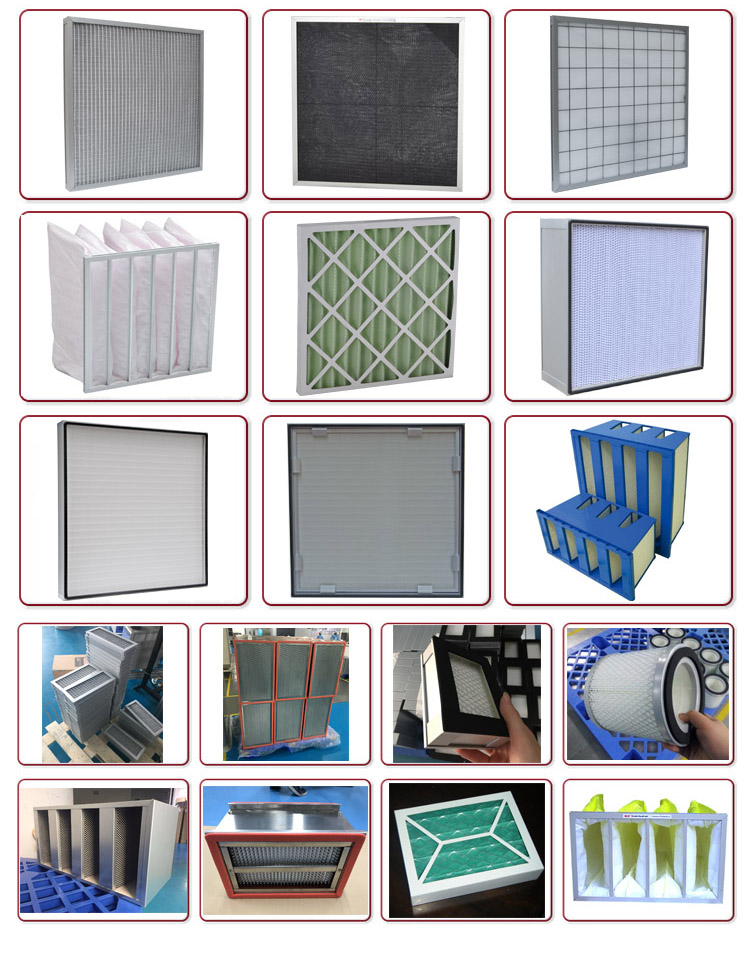

Custom Design

metal mesh air filter manufacturer



Product Specification

Model NO.

Actual Size

 HxWxD (mm)

Air Flow

(m³/h)

Media Area

Flow (m²)

Velocity

(m/s)

K514-001 287*287*10 800 0.17 2.54
K514-002 592*287*10 1600 0.34 2.54
K514-003 592*592*10 3200 0.70 2.54
K514-006 592*592*15 3200 1.05 2.54
K514-007 287*287*21 800 0.41 2.54
K514-008 592*287*21 1600 0.82 2.54
K514-010 592*592*21 3200 1.75 2.54
K514-013 592*490*46 2650 2.61 2.54
K514-015 592*287*50 1600 1.87 2.54
K514-016 592*592*50 3200 3.86 2.54



Application

Used for central air-conditioning range hood and filtration, special ventilation of acid and alkali and high humidity resistance filtration.
