Washable G1 / G2 / G3 / G4 Synthetic Fiber Panel Filter

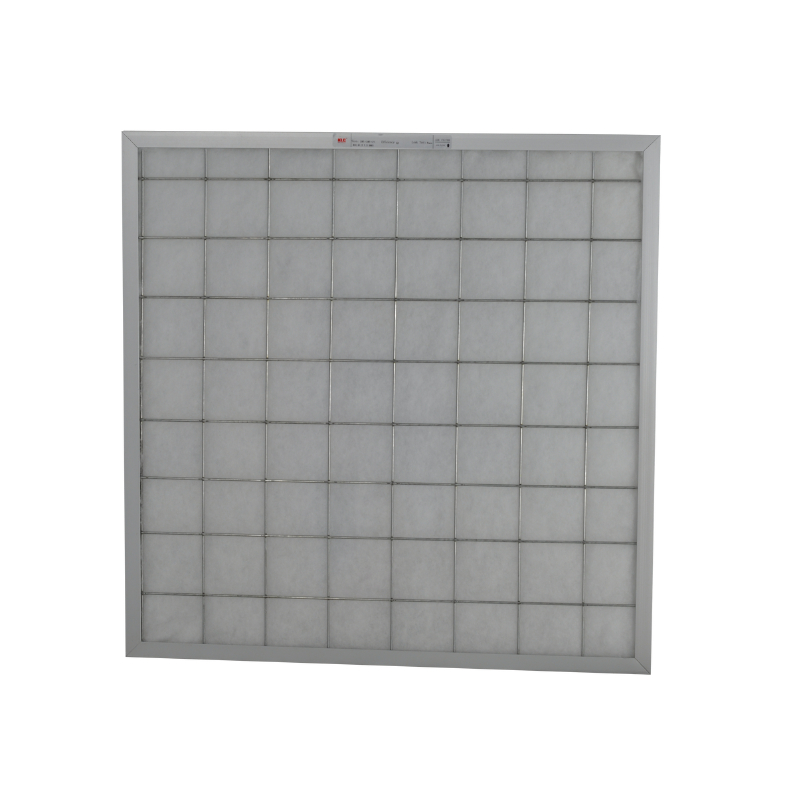

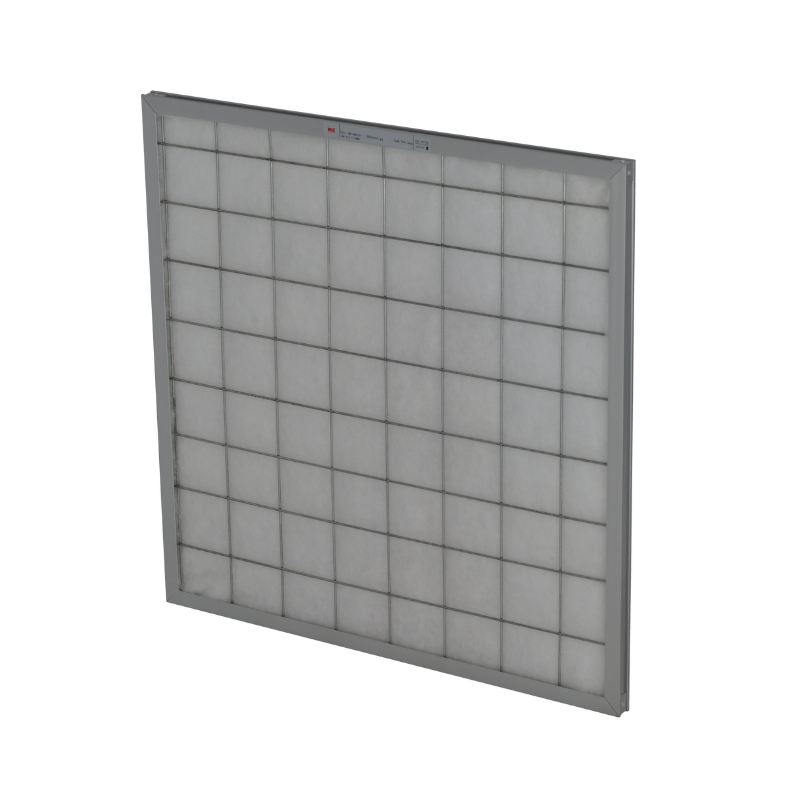

Washable G1 / G2 / G3 / G4 Synthetic Fiber Panel Filter

Washable , Replaceable filter media. High strength, large air volume, small resistance, high capacity of dust.



  • Item NO. :

    K61
  • Optional Thickness :

    10 / 17 / 21 / 25 mm
  • Frame :

    Aluminum / GI
  • Media :

    Synthetic fiber
  • Max Temperature :

    50℃
  • Max Humidity :

    100%

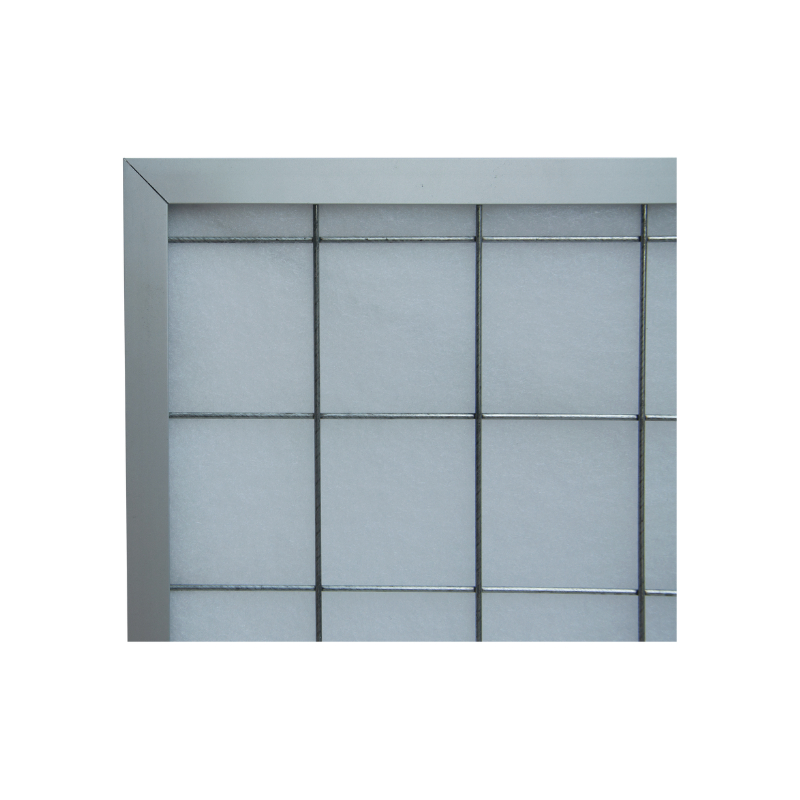

  • Face guard :

    Square mesh / Grid mesh / Sprayed metal net

Synthetic Fiber Panel Filter



Product Feature

◎ Washable

◎ Large dust holding capacity

◎ 100% Factory inspection

◎ Large air volume and low initial resistance

◎ Simple structure and easy to replace filter media

◎ Strong intensity



Custom Design

pre Panel Filter

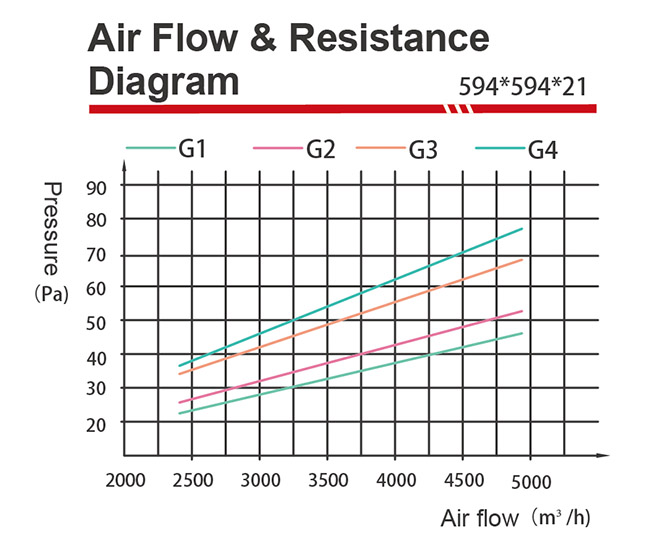

Product Specification

Model NO.

Actual Size

 HxWxD (mm)

Air Flow

(m³/h)

Media Area

Flow (m²)

Velocity

(m/s)

Efficiency
K61-001 594*289*10 1200 0.19 1.50 G1-G2
K61-002 594*492*10 2100 0.31 1.50 G1-G2
K61-003 594*594*10 2500 0.37 1.50 G1-G2
K61-004 594*289*15 1200 0.19 2.00 G1-G2
K61-005 594*492*15 2100 0.31 2.00 G1-G2
K61-006 594*594*15 2500 0.37 2.00 G1-G2
K61-007 594*289*21 1550 0.19 2.54 G1-G2
K61-008 594*492*21 2650 0.31 2.54 G1-G2
K61-009 594*594*21 3250 0.37 2.54 G1-G2



Application

Used at restricted environment and large air volume environment.

Application for pre-filter of air conditioning systems, pre-filter of the multi-stage filtration system.
