Stainless steel high-speed airflow nozzles, durability, corrosion resistance, easy cleaning and maintenance, high hygiene standards, and compatibility with various disinfection agents.
Item NO. :
KLC-APEfficiency (EN779) :
99.99%@0.3μmSS nozzle diameter :
Φ25mmCabinet material :
Cold rolled steel with powder coated / Stainless steelInternal material :
Sand light stainless steelPower supply :

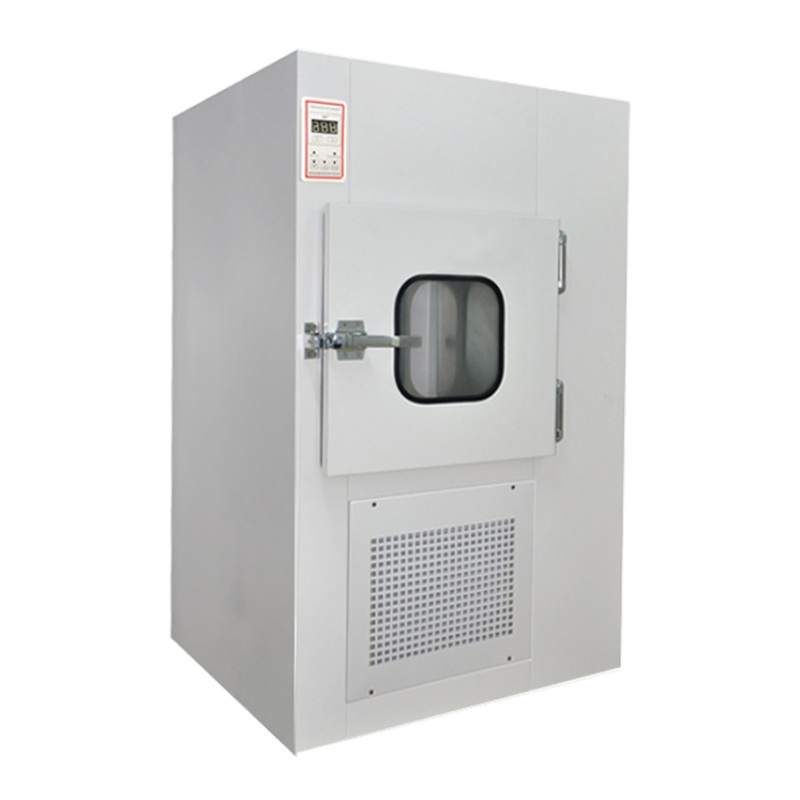

380V/50HzPass box with air shower is a cleanroom equipment used for transferring materials between controlled areas. It combines a pass box for material transfer and an air shower that cleanses the materials using high-velocity HEPA-filtered air jets. It ensures contamination-free transfer and is widely used in pharmaceutical manufacturing and research laboratories.
Product information
Pass pox with air shower is devised on the basis of the air shower. It keeps the wind spray in 20m/s speed through the stainless steel nozzle after HEPA filter. It's very significant effect in the filtrate and strong to use.
Quality matetrial
1. Use the high quality cold-rolled steel sheet with epoxy powder coated or stainless steel, wear-resisting ground steel plate, stainless steel nozzle, have good corrosion resistance and rust resistance.
2. Use transparent window and LED electronic lighting, better lighting and less energy.
Product features
1. The surface material of pass box is cold rolled steel or stainless steel.
2. The inside material of pass box is stainless steel, it can prevent scratches and keeps the pass box flat, neat and wearable.
3. Doors in two sides with machinery or electronic interlock.
4. Adopt mini-pleated HEPA filter in 99.99%@0.3μm efficiency.
5. The wind speed of nozzle above 20m/s
6. According to production process requirement, it can install efficient sterilization lamp.
Custom Design
Product Specification
Application fields
Widely used in the clean environment such as micro-electronics, laboratory, national defense, precise instrument, biopharming, opto-electronics, aseptic packaging, etc.
