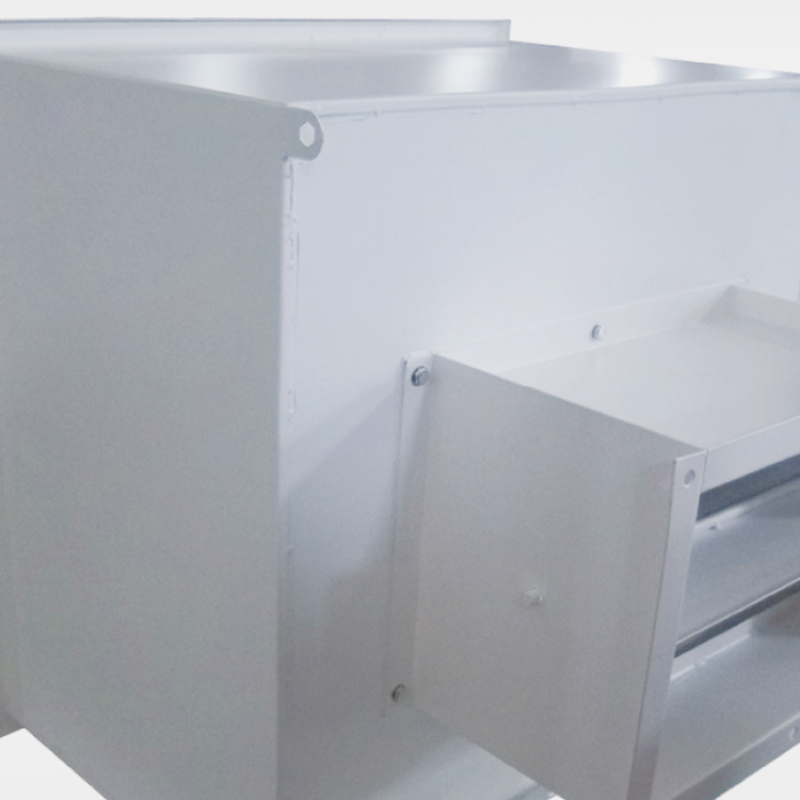

Cleanroom HEPA Ceiling Modular DOP Testing HEPA Filter Box

Cleanroom HEPA Ceiling Modular DOP Testing HEPA Filter Box

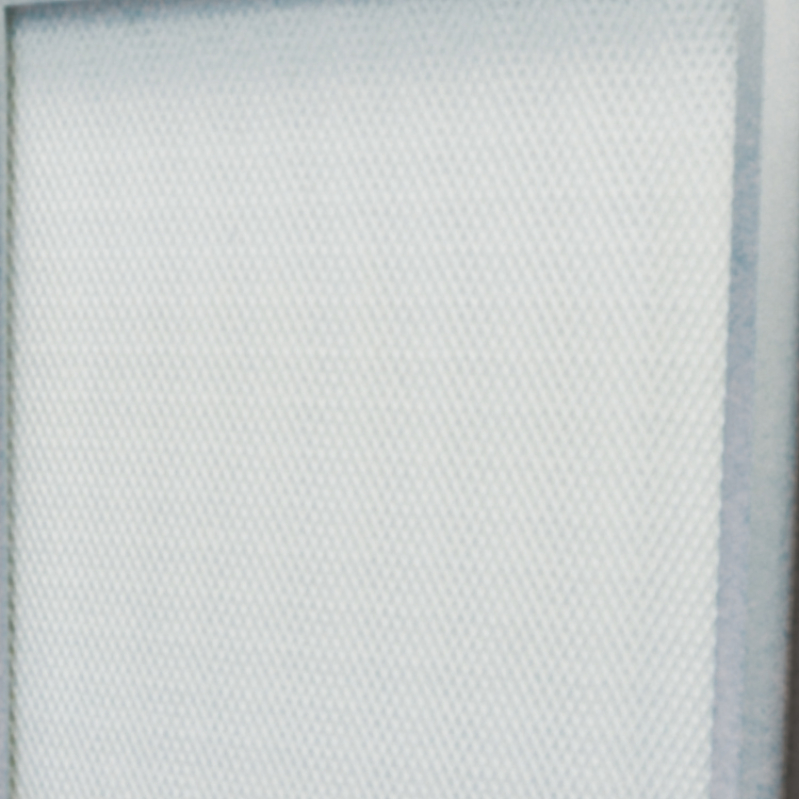

Adopts the gel mini-pleat HEPA filter with better sealing.

  • Item NO. :

  • Cabinet material :

    Cold rolled steel with powder coated / Stainless steel
  • Air intake position :

    At side / At top
  • Flange :

    Square/ Circle
  • Optional flange port / flange / damper position :

    at side / at top;
  • Optional filter type :

    HEPA / ULPA gel sealant filter

DOP hepa box


Product information

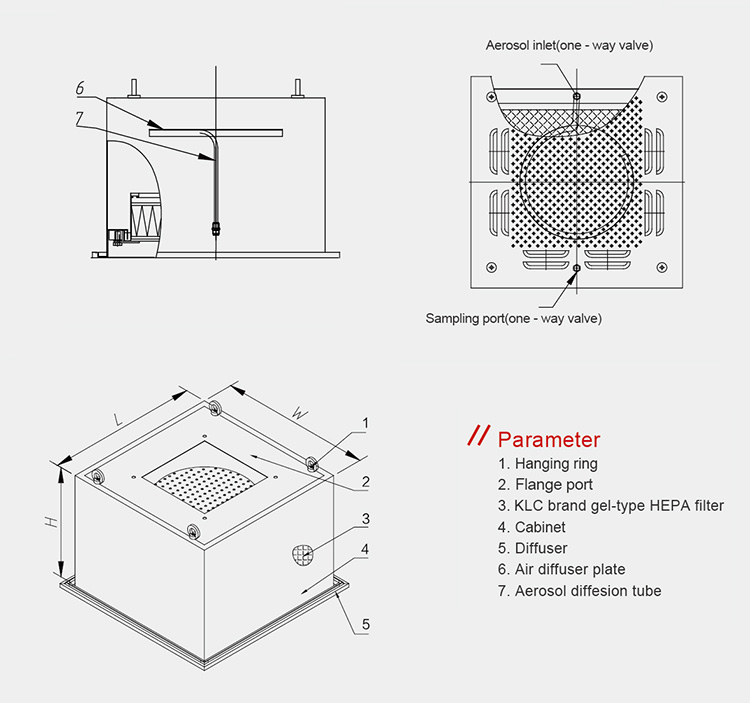

DOP HEPA Box is includes the plenum chamber, HEPA filter and diffuser. With characteristics of less investment and simple construction in the roof of transformation and foundation of new clean room, the DOP HEPA Box can be used as the terminal HEPA filtration setting system to install.



Product feature

1. the DOP HEPA Box adopts the gel mini-pleat HEPA filter with better sealing.

2. It can test HEPA filter’s leakage and check the airproofing status of gasket, frame and glass fiber media. It is more convenient to leak leakage to HEPA filter of the aseptic workshop.



Custom Design

klc cleanroom equipment




Product Specification






Cabinet Size


410x410x400 574x574x400 700x700x400 1005x700x400

Filter Size


346x346x90 510x510x90 636x636x90 941x636x90

Air Flow


500 1000 1500 2000




Widely used in different classes & structure uneven clean rooms
