Terminal Air Filtration Equipment Ventilation Fan

Terminal Air Filtration Equipment Ventilation Fan

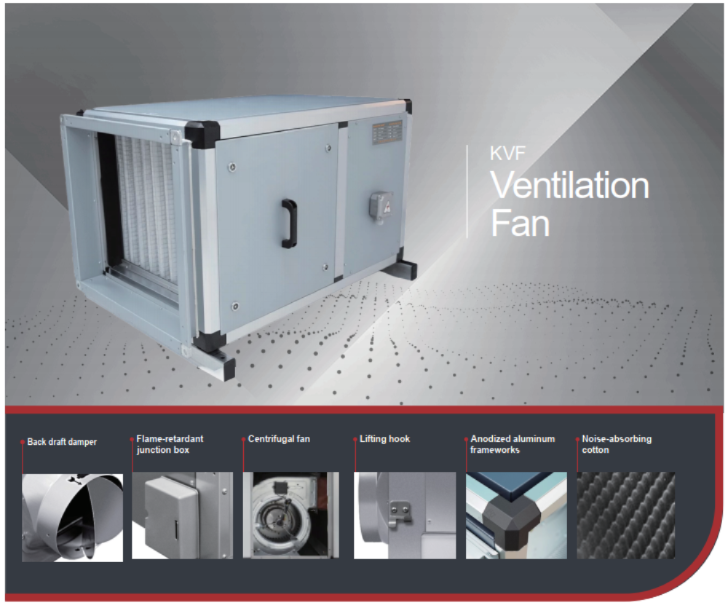

Ventilation Fan



1. Stepless speed regulation

Continuous speed adjustment allows you to choose the wind volume flexibly.

2. High-efficiency energy

Permanent magnet motor with true frequency conversion, high-efficiency energy saving and powerful power output.

3. Low noise

The permanent magnet motor operates smoothly and quietly, thanks to internal noise reduction measures and a scientifically designed air duct.

4. Weather resistance housing material

 Apply temperature stable rock-wool sandwich panel as housing material to protect the insulation from damaged.

5. Anit-corrosion coated panel

The epoxy coated front panel is durable, rust-proof and corrosion-resistant.

6. User friendly installation and maintenance

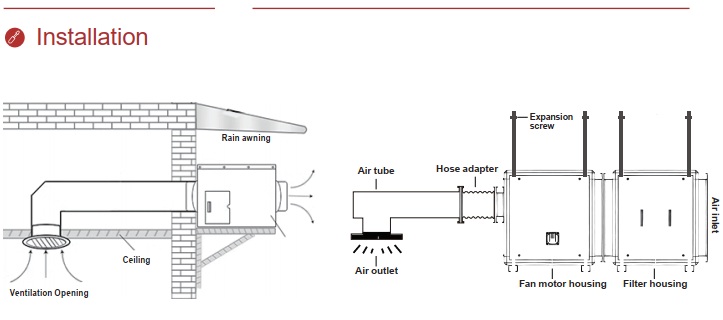

Both floor mounted and ceiling mounted available for installation; big inner sizes for fan's and filter's maintenance and replacement



Ventilation Fan

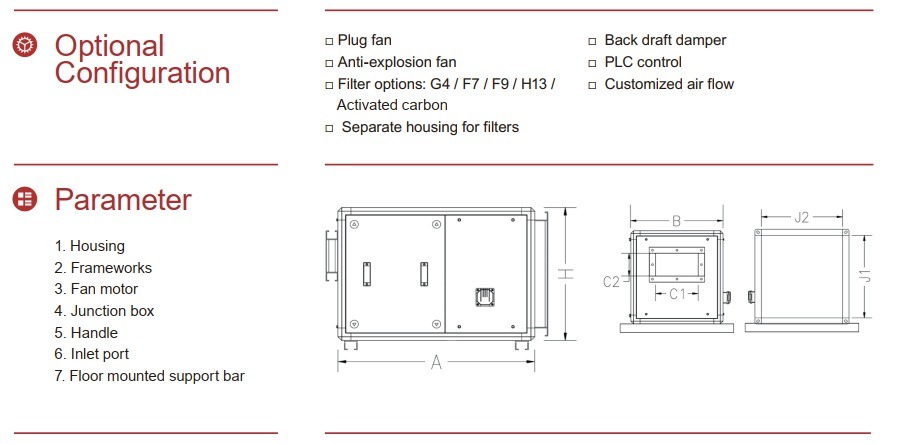

Model KVF-1000 KVF-2000 KVF-3000 KVF-5000 KVF-8000
Material Rock-wool sandwich panel / Galvainzed steel / Stainless steel
Size(W*L*Hmm) 800*450*450 850*500*500 850*550*550 1000*650*650 1100*750*750
Air fiow (m³/h) 1000 2000 3000 5000 8000
Total pressure 300 300 450 480 700
Power supply (V) 380/220 380/220 380/220 380 380
Noise (dB) 45 54 60 65 70
Inlet port (W*H) 390*390 440*440 490*490 590*590 690*690



Terminal air filtration equipment

air filtration equipment
