The choice between Fan Filter Units (FFU) and HEPA Filter Boxes depends on air handling architecture: active FFUs utilize integrated motors to draw and recirculate air locally, while passive HEPA boxes rely on central Air Handling Units (AHU) and extensive ducting to deliver conditioned air to terminal filters.

This technical article covers the mechanical principles, operational characteristics, and installation complexities of active Fan Filter Units (FFUs) versus passive HEPA Filter Boxes (HEPA boxes). We analyze their impact on HVAC design, compare their lifecycle costs, and present a structured engineering selection matrix. This guide is written for cleanroom architects, mechanical consultants, and facilities managers across the semiconductor, pharmaceutical, and healthcare sectors who must choose the optimal terminal filtration system for new cleanroom builds or facility retrofits.

 Technical Principles: Active vs. Passive Cleanroom Ventilation

Terminal filtration is the final barrier between a cleanroom’s air supply system and its controlled environment. Deciding how to deliver and filter this air dictates the overall layout, structural load, and energy footprint of the facility’s HVAC infrastructure.

 Fan Filter Unit (Active Filtration)

A Fan Filter Unit (FFU) is an active, self-contained terminal filtration module. It consists of a motorized impeller (fan) mounted directly on top of a HEPA or ULPA filter housing. - Mechanism of Operation: The integrated fan draws air from a ceiling plenum (often a recirculating plenum) or a low-pressure duct. It pressurizes the air inside the unit’s internal mini-plenum and forces it downward through the HEPA filter media. - System Impact: Because each FFU has its own drive mechanism, the external air handling system (AHU) does not need to overcome the static pressure drop of the HEPA filter. The AHU is only responsible for introducing fresh makeup air, controlling temperature and humidity, and delivering pre-conditioned air to the ceiling plenum.

 HEPA Filter Box (Passive Filtration)

A HEPA Filter Box (also known as a terminal diffuser or terminal HEPA housing) is a passive device. It does not contain any motorized components. - Mechanism of Operation: The HEPA box receives pre-conditioned and highly pressurized air from a central AHU via a branching network of galvanized or insulated flexible ducts. The air is forced through the box’s terminal HEPA filter by the static pressure generated by the central AHU’s massive supply fan. - System Impact: The central AHU must generate sufficient static pressure to overcome the cumulative resistance of all dampers, elbows, long duct runs, and the terminal HEPA filter itself. This requires large central fan motors and extensive, balancing-intensive ductwork.

 Engineering Comparison and Selection Matrix

The choice between active and passive terminal filtration impacts every aspect of cleanroom operation, from acoustic comfort to long-term flexibility.

 Ceiling Space and Structural Load

FFUs are heavier than passive HEPA boxes because of their integrated motors and impellers. Consequently, the ceiling grid (T-bar or heavy-duty FFU grid) must be engineered to support this additional static weight. However, FFUs require far less vertical ceiling space because they draw air directly from an open ceiling plenum. HEPA boxes, while lighter, require substantial vertical clearance in the ceiling void to accommodate branching duct runs and manual volume control dampers.

 Noise and Vibration Control

Because FFUs contain individual motors, having hundreds of units in a large cleanroom can introduce localized noise and vibration. This is a critical concern in sub-micron semiconductor fabs (where photolithography equipment is sensitive to micro-vibrations) or research laboratories. Modern FFU designs address this by using precision-balanced motorized impellers and vibration-dampening mountings. Passive HEPA boxes generate zero localized vibration because they have no moving parts. However, high-velocity air flowing through duct elbows and dampers in passive systems can generate high-frequency acoustic noise if not insulated correctly.

 Air Balancing and Control

Balancing a cleanroom with passive HEPA boxes requires manual adjustment of volume dampers inside the ceiling plenum, which is a tedious, iterative process. If one HEPA box damper is adjusted, the pressure shifts, affecting airflow in all other boxes. FFUs, especially when equipped with electronically commutated (EC) motors, can be integrated into a digital group control system (using RS485 or Modbus). Technicians can adjust the air velocity of individual units or groups from a central computer, and the motors can automatically adjust their speed to maintain uniform airflow as the filters load.

 Installation and Commissioning Complexity

The installation workflows for active and passive systems differ significantly:

• FFU Installation: FFU systems are highly modular. Units are lifted into the ceiling grid from the room side or plenum side and plugged into a localized power rail. Since there are minimal or no duct connections, physical installation is fast. During commissioning, air velocity is adjusted digitally.

• HEPA Box Installation: Installing passive HEPA boxes is labor-intensive. Each box must be hung from the building’s structural slab using threaded rods, and then connected to the main supply duct using flexible or rigid collars. Airflow balancing requires technicians to climb up and manually adjust dampers while taking air velocity measurements with a hood, which can take days or weeks for large cleanrooms.

 Lifecycle and Maintenance Cost Analysis

Evaluating the true cost of terminal filtration requires analyzing both initial capital expenditure (CAPEX) and ongoing operational expenditure (OPEX).

• CAPEX Considerations: Passive HEPA boxes have a lower initial unit price than FFUs. However, when the cost of extensive insulated ducting, volume control dampers, and the larger horsepower motors required for the central AHU is factored in, the capital cost gap between the two systems shrinks considerably.

• OPEX Considerations: FFUs equipped with energy-efficient EC motors can lower operational costs. Because the ceiling plenum acts as a low-resistance path, the total static pressure that the HVAC system must overcome is dramatically reduced, translating to lower overall fan energy consumption.

• Maintenance Effort: Passive HEPA boxes require minimal maintenance, as there are no mechanical parts to fail; only the HEPA filter must be replaced. FFUs require periodic inspection of the motors, though modern brushless EC motors have a bearing life exceeding 50,000 to 100,000 hours of continuous operation.

 Hybrid Cleanroom Configurations: When to Combine Both

In modern cleanroom design, engineers do not always treat FFU and HEPA boxes as mutually exclusive. Hybrid configurations are frequently used to optimize performance and budget:

Class-in-Class Layouts: In a large ISO Class 7 pharmaceutical packaging hall, specific zones (like the filling line or open-container handling areas) must meet ISO Class 5 standards. Rather than upgrading the entire room to FFU filtration, designers install passive HEPA boxes for the general ISO Class 7 area and suspend an array of active FFUs directly over the critical filling line to create a localized ISO 5 laminar flow zone.

Plenum Pressurization Hybrid: In some cleanrooms, a central AHU is used to supply pre-conditioned air to a sealed ceiling plenum, maintaining it under a slight positive pressure. Active FFUs then draw from this pressurized plenum and filter the air into the room. This reduces the motor load on the FFUs and ensures absolute uniform downflow.

 KLC International’s Versatile Terminal Filtration Systems

KLC International offers high-quality solutions for both active and passive cleanroom terminal filtration, allowing engineers to choose the best configuration for their application.

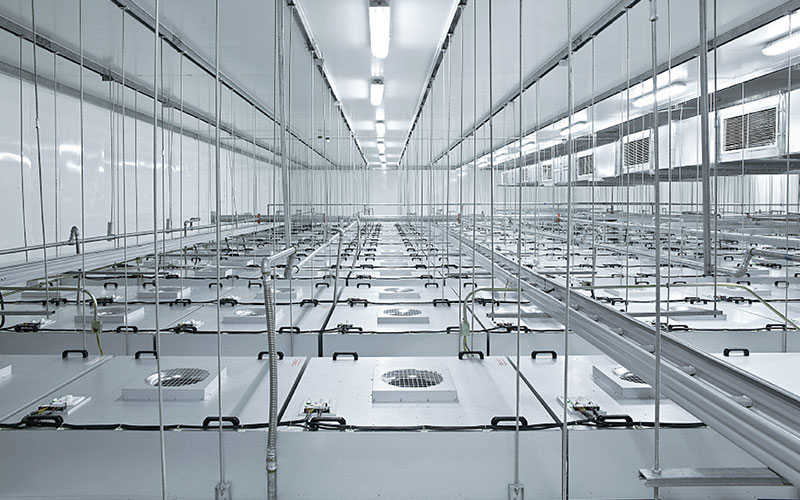

• KLC Fan Filter Units (FFU): KLC FFUs feature high-performance brushless EC motors that deliver up to 50% energy savings compared to standard AC units. They operate at low noise levels (≤53 dB(A) for standard models) and are equipped with RS485 group control capabilities, allowing a single terminal to manage up to 7,900 units. Their low-profile design (under 250 mm height) is ideal for facilities with restricted ceiling voids.

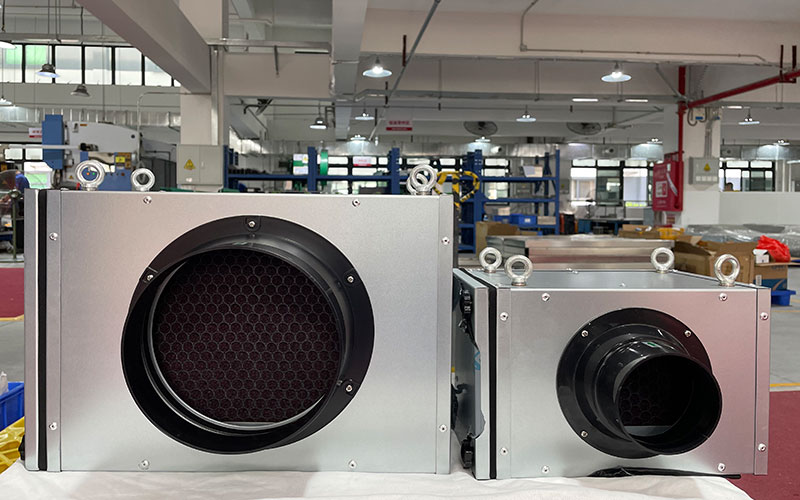

• KLC Terminal HEPA Filter Boxes: KLC passive HEPA boxes are built from cold-rolled steel with an electrostatic powder coat or high-grade SS304. They feature integrated airtight mechanical dampers, liquid gel-seal knife-edge grids for zero-leak validation, and quick-connect room-side test ports for efficient PAO/DOP testing.

FAQ: FFU vs. HEPA Filter Box

Which system is more energy efficient: FFU or HEPA Filter Box?

In medium to large cleanrooms, FFU systems equipped with EC motors are generally more energy efficient. Passive HEPA boxes require the central AHU to push air through long, high-resistance duct networks, which leads to significant static pressure losses. FFUs bypass these losses by drawing air from an open plenum and filtering it locally, allowing the central AHU to operate at much lower static pressures.

Can I upgrade a cleanroom from HEPA boxes to FFUs in the future?

Yes. Upgrading from passive HEPA boxes to active FFUs is a common retrofit strategy for cleanrooms needing to step up their cleanliness level (e.g., from ISO 7 to ISO 5). Because FFUs fit directly into standard ceiling grids, you can remove the passive boxes, modify or disconnect the ducting, and drop in motorized FFU modules without structural ceiling overhauls.

How does the localized noise of FFU arrays compare to passive HEPA boxes?

A single passive HEPA box is completely silent. A single FFU runs at 52 to 58 dB(A). However, in large arrays, the acoustic overlap of hundreds of FFUs must be managed. Modern EC motor designs and acoustic baffles in KLC FFUs minimize this, keeping the cumulative cleanroom background noise well within international standards (typically ≤60 to 65 dB(A) for working cleanrooms).

How often do the motors in Fan Filter Units need to be replaced?

High-quality FFUs, such as those from KLC, utilize brushless EC motors with self-lubricating ball bearings. These motors have an operational life expectancy of 50,000 to 100,000 hours, which translates to roughly 6 to 11 years of continuous 24/7 operation before requiring bearing or motor replacement.

What is the height clearance required in the ceiling plenum for both systems?

Passive HEPA boxes typically require at least 600 to 800 mm of vertical space to accommodate branching duct bends and manual dampers. Active FFUs can operate in plenums with as little as 300 to 400 mm of clearance, making them the preferred choice for retrofits in buildings with low ceiling profiles.

Are FFUs suitable for cleanrooms handling highly hazardous chemicals?

Active FFUs that recirculate air within an open ceiling plenum are not recommended for cleanrooms handling highly toxic or volatile chemicals unless the plenum is fully ducted and operating under negative pressure. For toxic applications, ducted passive HEPA boxes are often preferred to ensure hazardous vapors are securely transported directly to the exhaust AHU or carbon scrubbers.

Why is an EC motor preferred over an AC motor in FFU systems?

EC (electronically commutated) motors combine the maintenance-free nature of AC induction motors with the speed-control advantages of DC motors. They are up to 40-50% more energy efficient than AC motors, run cooler, produce less vibration, and can be digitally controlled via an RS485 network for automated speed adjustments.

How do you perform a PAO leak test on a passive HEPA filter box?

For a passive HEPA box, the PAO aerosol is injected into the main supply duct upstream of the box. Technicians then use the room-side test port on the box’s diffuser to measure the upstream aerosol concentration before using a photometer probe to scan the face of the HEPA filter for leaks.

Can FFU systems operate without any ductwork at all?

Yes. In a “plenum return” cleanroom, air from the room is drawn through floor-level grilles, travels up through side-wall return shafts, and enters an open ceiling plenum. The FFUs draw air directly from this open plenum and push it back into the cleanroom, eliminating supply ductwork entirely.

How do KLC FFU group control systems work?

KLC’s FFU group control systems utilize RS485 communication lines linked to a central control terminal or PLC. This allows facilities managers to monitor, adjust, and program up to thousands of individual FFUs. The software provides real-time feedback on motor status, rotational speed, and runtime, and sends immediate alerts if any unit experiences an electrical or mechanical fault.

Conclusion and Recommendation

The decision between active Fan Filter Units and passive HEPA Filter Boxes should be guided by your cleanroom class, long-term flexibility needs, and ceiling space limitations. For large, high-grade cleanrooms (ISO 5 and above) or facilities where layout flexibility is critical, active FFU systems are the industry-standard choice. For lower-class cleanrooms (ISO 7-8) with limited initial budgets and silent operation requirements, passive HEPA boxes are highly effective.
