In the operation of air filtration systems, the relationship between air filter resistance and energy consumption is a core concern for many companies in controlling operating and maintenance costs. Every 100 Pa increase in air filter resistance significantly increases the energy consumption of the ventilation system's fan.
Why does high air filter resistance lead to high energy consumption?
The core of a ventilation system is the fan, whose function is to overcome the resistance of the entire system and move air in and out.
As the usage time increases, more dust and impurities accumulate on the air filter, causing the resistance to continuously increase. The fan then needs to output more power to overcome this resistance, leading to a surge in power consumption.
Data shows that when the air filter resistance increases to twice its initial value, the fan's energy consumption may increase by more than 30%! Air filter resistance is not a constant value; it gradually increases with the increase in the dust-holding capacity of the air filter material. When the resistance exceeds the design threshold, it not only increases energy consumption but may also affect the ventilation volume, thereby disrupting the stability of the clean environment. Mastering scientific resistance reduction methods can effectively balance filtration efficiency and operating costs, achieving efficient and energy-saving system operation.
Choosing the right filter type: Controlling initial resistance from the source
Initial resistance is one of the core performance parameters of a air filter and a key factor in determining the system's basic energy consumption. During the selection phase, it is necessary to choose low-resistance and suitable air filter products based on the actual application scenario.

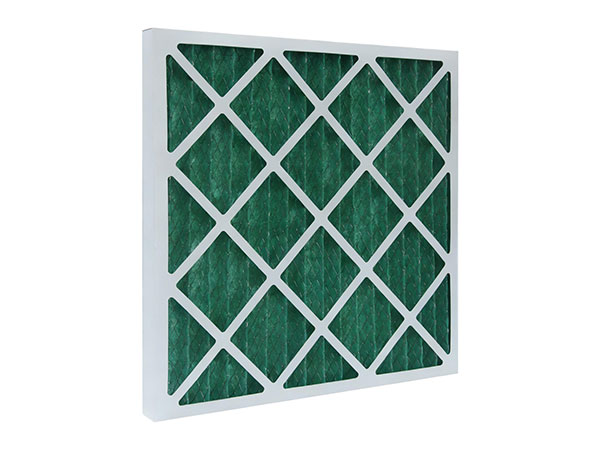

1. Prioritize products with large filtration areas: Under the same filtration efficiency, the larger the filtration area, the slower the airflow through the filter material, and the lower the initial resistance. For example, the initial resistance of a Pleated Pre-filter is far lower than that of a pleated Pre-filter of the same specifications; medium-efficiency pocket filters further reduce resistance by increasing the number and volume of filter bags.
2. Match the filtration efficiency level: Avoid "over-specifying," and choose air filters with the corresponding efficiency based on downstream purification requirements. If only large particles of dust need to be intercepted, blindly choosing a high-grade air filter will significantly increase the initial resistance, causing unnecessary energy waste.
3. Choose high-quality, low-resistance air filter materials: High-quality air filter materials have a more reasonable fiber arrangement and better air permeability. Optimizing Installation and Configuration Methods
A reasonable installation layout and filter layer combination can reduce airflow resistance losses within the system, preventing increased energy consumption caused by excessively high local resistance.
1. Ensure installation airtightness: Gaps between the filter and the frame can lead to airflow short-circuiting, affecting not only the filtration effect but also causing local airflow turbulence, indirectly increasing system resistance. During installation, strictly follow specifications and use sealing strips or edge sealing designs to ensure a seamless connection.
2. Scientifically design the filtration stages: Follow the progressive filtration principle of "pre-filter - medium-efficiency filter - high-efficiency filter," allowing different levels of filters to perform their respective functions. The pre-filter intercepts large particles, and the medium-efficiency filter captures fine dust, preventing large particles from directly entering the high-efficiency filter. This extends the service life of the high-efficiency filter and maintains the stability of the overall system resistance.
3. Reasonably arrange the number of filters: Based on the airflow requirements of the ventilation system, reasonably configure the number and arrangement of filters to avoid rapid resistance increase due to airflow overload on a single filter unit.
The positive correlation between air filter resistance and energy consumption means that reducing resistance is the core path to cost reduction. Scientific control at every stage, from selection and installation to operation and maintenance, can achieve energy-efficient and high-performance operation of the ventilation system.
