A HEPA-filtered clean wardrobe prevents cleanroom garment contamination in changing rooms by continuously flushing the storage cabinet with H14-grade HEPA-filtered laminar airflow, maintaining ISO Class 5 positive pressure to isolate garments from ambient particulate deposition.

This article covers the operational mechanics of HEPA-filtered clean wardrobes, the critical risks of conventional garment storage, engineering specifications, and strategic integration across industries. Cleanroom designers, quality assurance (QA) managers, and facility operations heads will find this guide crucial for optimizing gowning room protocols and contamination barriers.

 Section 1: The Gowning Room Vulnerability: Why Conventional Garment Storage Fails

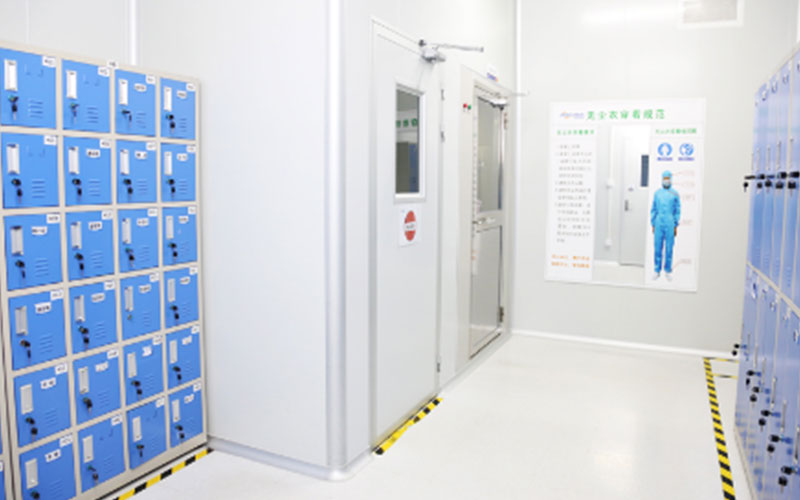

In any cleanroom facility, the human element represents the largest source of particulate and microbial contamination. While operators wear specialized cleanroom garments—such as coveralls, hoods, and boots—to contain skin flakes and hair, the process of storing and donning these garments is often a weak link. Gowning rooms or changing areas are typically designed as transitional buffer zones, which means they maintain lower cleanliness levels than the core cleanrooms (e.g., an ISO Class 7 changing room serving an ISO Class 5 production floor).

When cleanroom garments are stored in standard, non-ventilated wardrobes, they are exposed to the ambient air of the changing room. Over time, suspended particles, dust, and airborne microorganisms settle onto the exterior surfaces of the garments. When an operator dons a pre-contaminated suit, these particulates are carried directly into the ultra-clean production environment, bypassing the gowning protocol’s intent. Static electricity, common in synthetic cleanroom fabrics, exacerbates this issue by actively attracting micro-particles. Therefore, maintaining garment cleanliness during storage is essential to prevent re-contamination before entry.

 Section 2: Technical Principles of the HEPA Clean Wardrobe

The HEPA-filtered clean wardrobe (also known as a cleanroom garment cabinet) solves the re-contamination problem through continuous active filtration and positive pressure. The system operates on a recirculating or single-pass laminar flow air-delivery design:

Air Intake and Pre-filtration: A heavy-duty centrifugal blower draws air from the gowning room into the bottom or top of the wardrobe. The air passes through a primary G4-grade panel pre-filter, which captures large particles (≥5.0 μm), protecting the secondary high-efficiency filter and extending its service life.

Pressurization and H14 HEPA Filtration: The blower forces the pre-filtered air into a plenum chamber, creating uniform pressure distribution. The air is then pushed through a high-efficiency particulate air (HEPA) filter. KLC utilizes premium H14-grade HEPA filters, which achieve an efficiency of 99.995% for 0.3 μm particles.

Laminar Flow Airflow Distribution: The ultra-clean air is discharged from the top down (vertical laminar flow) or from the back forward (horizontal laminar flow) across the hanging garments. This laminar air stream moves at a controlled velocity of 0.3 to 0.45 m/s, continuously flushing away any particles shed during garment handling.

Positive Pressure Barrier: Because air is continuously forced into the wardrobe, the interior cabinet pressure remains higher than the external gowning room. When an operator opens the wardrobe door to retrieve a suit, the internal positive pressure forces clean air outward, physically preventing unfiltered ambient air from entering.

 Section 3: Performance and Material Comparison

To evaluate the return on investment for cleanroom garment cabinets, facility managers must compare their engineering metrics against conventional storage systems.

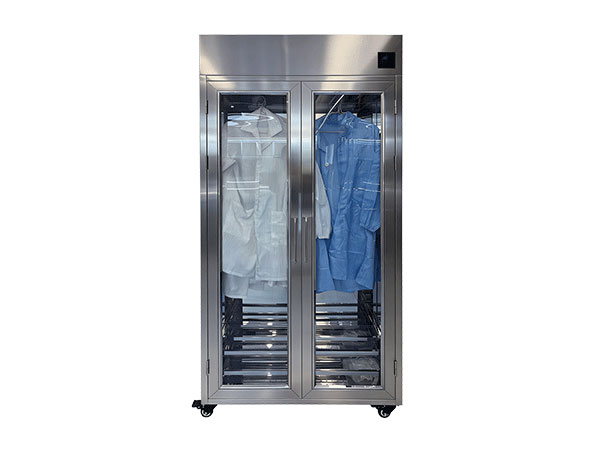

 Section 4: Engineering Specifications of KLC Clean Wardrobes

KLC Clean Wardrobes are built to withstand rigorous industrial sanitation protocols while delivering stable aerodynamic performance.

• Structural Material: Constructed entirely from cold-rolled steel with an electrostatic powder coat or premium-grade SUS 304 / SUS 316 stainless steel. Stainless steel is highly recommended for pharmaceutical and biotechnology applications due to its superior resistance to regular sanitization with chlorine dioxide or isopropyl alcohol (IPA).

• Double-Walled Sealing & Doors: Doors are available in clear, heavy-duty tempered glass or anti-static PVC strip curtains. Tempered glass doors feature magnetic gaskets to ensure an airtight seal when closed.

• Aerodynamic Output: Engineered to deliver more than 100 air changes per hour (ACH) inside the cabinet, achieving rapid self-purification in under 60 seconds after a door-open event.

• Aerosol Injection Port: Equipped with a built-in PAO/DOP test port to facilitate aerosol challenge testing, enabling easy certification of HEPA filter integrity in compliance with ISO 14644-3.

• Integrated Sanitization: Features built-in UV-C germicidal lamps with programmable safety interlocks that shut off the UV light when doors are opened, protecting operators.

• Static Management: Optional integrated ionizing blowers continuously neutralize static charges on cleanroom suits, preventing electrostatic discharge (ESD) and passive dust attraction.

 Section 5: Application Recommendations by Industry

• Pharmaceutical & Biotechnology (GMP Grade A/B/C): Storage cabinets must be made of SUS 304 or SUS 316L, featuring dynamic vertical laminar flow and UV-C disinfection. They must undergo regular PAO testing to verify H14 filter integrity. KLC’s dynamic clean wardrobes maintain an aseptic barrier, preventing bacterial spores from settling on gowns.

• Semiconductor & Microelectronics (ISO Class 3 to 5): The primary focus is static and particulate control. Wardrobes must be equipped with permanent ionizing bars, grounding terminals, and ultra-low penetration air (ULPA) U15-grade filters (99.9995% efficiency at 0.12 μm) to eliminate sub-micron particles.

• Food Processing & Aseptic Packaging (ISO Class 7 to 8): Cabinets must prioritize moisture-resistant pre-filters and high-humidity rated HEPA filters to handle wet cleanroom washdown environments while preventing mold growth on workwear.

 Section 6: FAQ (8 Questions)

Q1: Why is a standard wardrobe insufficient for cleanroom garments?

A standard wardrobe is a static, unventilated box. It traps particulate-laden air and biological contaminants inside. Each time the door is opened, ambient air from the changing room—which contains high levels of dust, skin flakes, and clothing fibers—enters the cabinet and settles on the stored suits. Cleanroom garments are highly static-sensitive and act as “particle magnets.” Without active HEPA filtration, positive pressure, and laminar airflow, garments degrade in cleanliness while hanging, leading to high contamination rates when transferred to the production area.

Q2: How often should the HEPA filter inside a clean wardrobe be replaced?

The service life of the primary H14 HEPA filter in a clean wardrobe typically ranges from 24 to 36 months, depending on the environment. This lifespan is heavily dependent on the regular maintenance of the G4 pre-filter, which should be replaced every 2 to 3 months. To determine the exact replacement time, facility technicians should monitor the pressure drop across the HEPA filter using the integrated magnehelic pressure gauge. When the static pressure reaches double the initial resistance (usually around 250 to 300 Pa), the HEPA filter must be replaced.

Q3: Does the clean wardrobe require a dedicated exhaust connection?

No, standard KLC clean wardrobes are designed as self-contained, recirculating systems. They draw air from the gowning room, pass it through the G4 and H14 filtration stages, and discharge the clean air back into the room through the bottom vents. This eliminates the need for expensive HVAC duct connections. However, for specialized applications involving highly potent active pharmaceutical ingredients (APIs) or hazardous chemicals, clean wardrobes can be engineered with top-mounted exhaust collars to duct the air into the facility’s return air system.

Q4: What material is recommended for cleanroom garment storage cabinets?

For pharmaceutical, biotech, and medical device environments, SUS 304 or SUS 316 stainless steel is highly recommended. These materials do not rust, do not shed particles, and are exceptionally resistant to corrosive sterilizing agents like vaporized hydrogen peroxide (VHP) and sodium hypochlorite. For microelectronics, semiconductor, and general manufacturing, electrostatic-painted cold-rolled steel is a cost-effective alternative, provided the coating is non-chipping and anti-static.

Q5: How does the positive pressure in the clean wardrobe prevent contamination?

Positive pressure ensures that the air pressure inside the wardrobe is higher than the air pressure in the gowning room. Air naturally moves from areas of high pressure to low pressure. When an operator opens the wardrobe doors, the clean, pressurized air inside the cabinet rushes outward, acting as an aerodynamic shield. This continuous outflow of clean air prevents the dirtier, unclassified ambient air of the changing room from entering the cabinet and contaminating the stored garments.

Q6: Can UV sterilization replace HEPA filtration in garment cabinets?

Absolutely not. UV-C sterilization and HEPA filtration serve completely different functions. HEPA filtration is a physical separation technology that removes inanimate dust, skin flakes, carbon particles, and fibers, which represent over 99% of cleanroom particulates. UV-C radiation only sanitizes biological contaminants (bacteria, viruses, molds) by disrupting their DNA/RNA. It cannot remove physical dust. A robust clean wardrobe must combine both: HEPA filtration to eliminate physical particles, and UV-C lamps as an auxiliary tool for microbial control.

Q7: What is the standard air velocity inside a HEPA clean wardrobe?

The industry standard for air velocity inside a clean wardrobe is 0.3 to 0.45 m/s (60 to 90 FPM) at the diffuser face. This specific range is critical. If the velocity is too low (below 0.25 m/s), the airflow will not be sufficiently strong to maintain stable laminar flow and repel incoming air. If the velocity is too high (above 0.55 m/s), it will cause excessive turbulence, increase fan noise, consume unnecessary power, and cause the stored garments to sway violently, which can generate friction-induced particles.

Q8: How does KLC ensure the structural integrity and seal of its clean wardrobes?

KLC ensures maximum structural integrity through high-precision manufacturing, utilizing fully welded joint structures and computer-controlled laser cutting. To prevent bypass leakage—where dirty air bypasses the HEPA filter—we employ proprietary liquid polyurethane gel seal gaskets or high-density neoprene gaskets around the HEPA mounting frame. Every unit undergoes complete mechanical and aerodynamic testing, including physical vibration analysis and housing seal integrity validation, before leaving our Guangzhou manufacturing facility.

 Section 7: Conclusion and Recommendation

For modern high-tech industries, contamination control begins long before the operator steps onto the production floor. Implementing a high-performance HEPA-filtered clean wardrobe is a highly effective, data-proven method to preserve cleanroom garment integrity and lower overall scrap rates. KLC’s state-of-the-art clean wardrobes provide robust, certified protection that meets stringent ISO and GMP standards.

To optimize your cleanroom changing rooms and explore tailored storage solutions, contact our technical sales team at KLC International.
