It helps to minimize the risk of cross-contamination from the operator's activities, ensuring the safety of both the operator and the samples or products being handled.
Item NO. :
CBHCabinet material :
powder coated steel/stainless steelPurification class :
class 100 / ISO 5HEPA efficiency :
99.99%@0.3umPower supply :
220V/50HzTable-board material :
Sand polished stainless steel
Product information

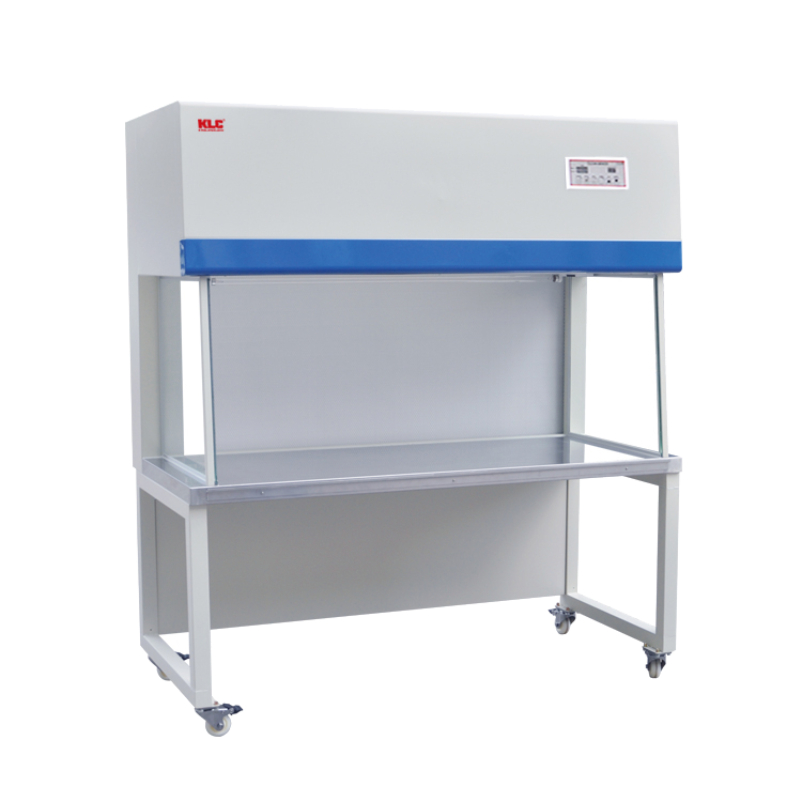

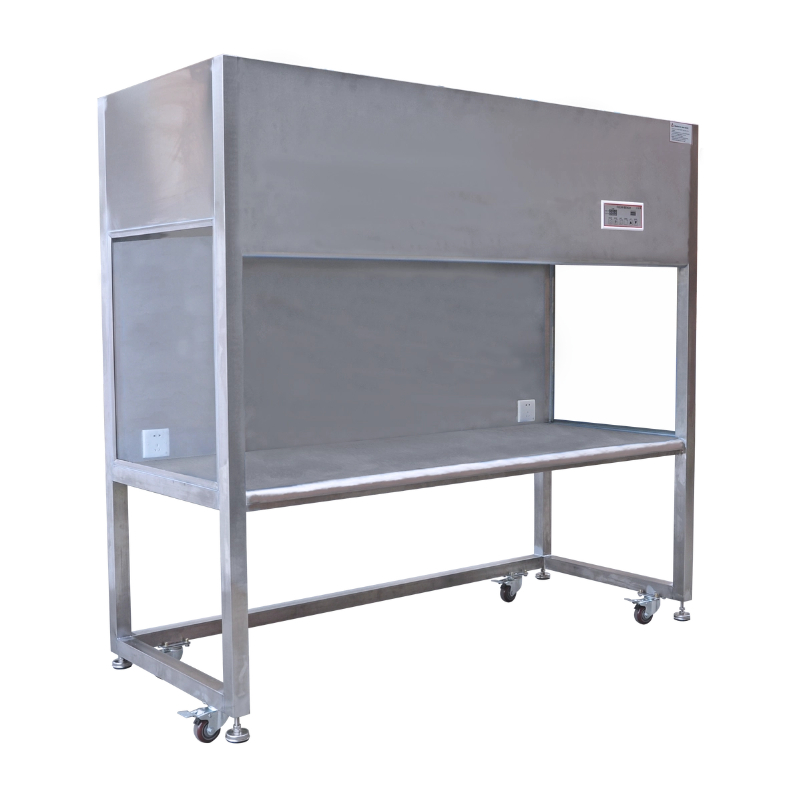

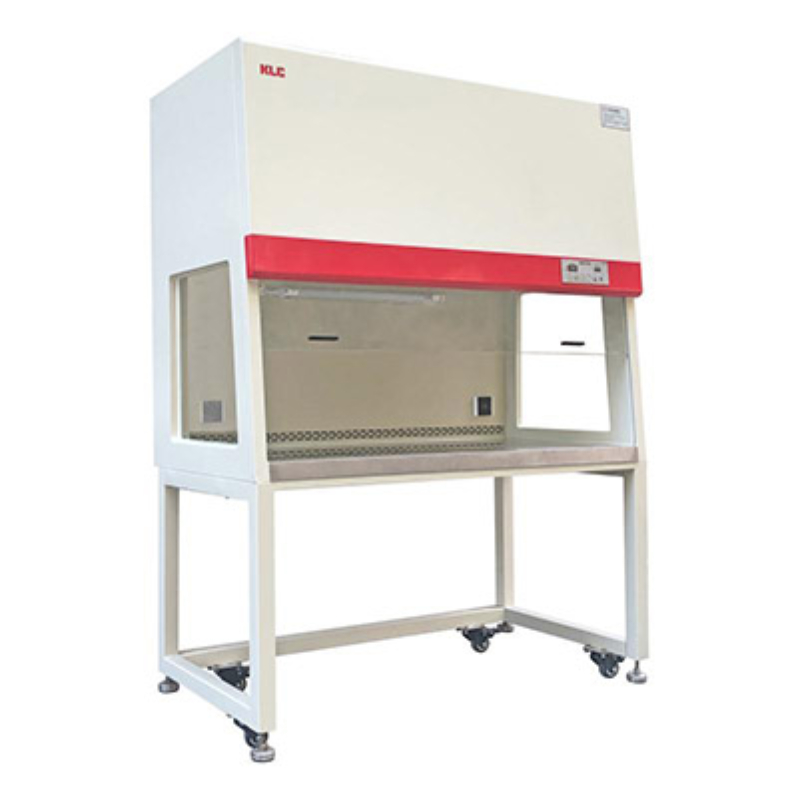

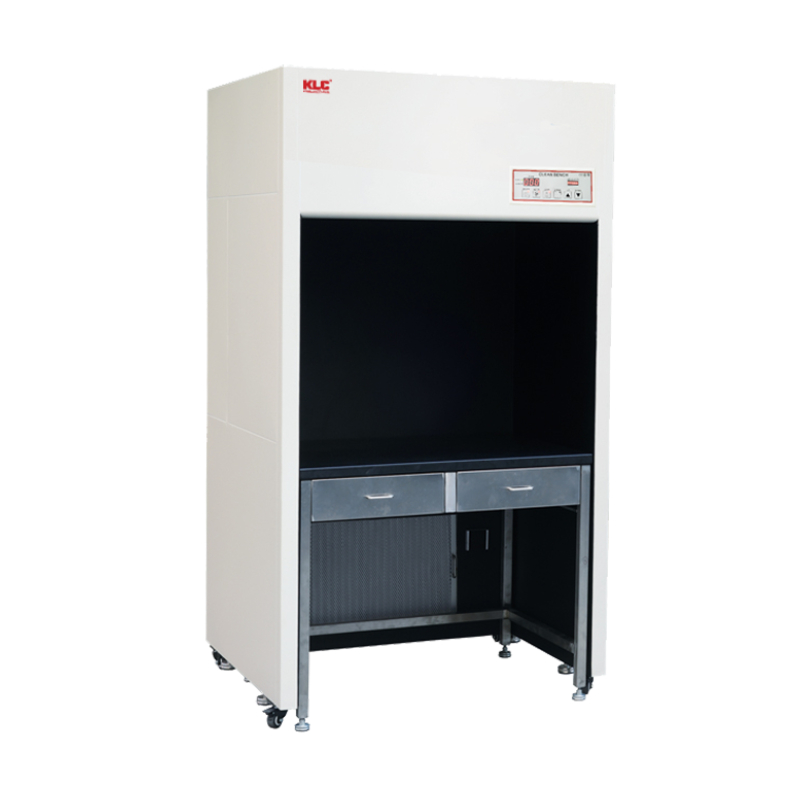

The vertical flow clean bench adopts airflow forming principle of vertical unidirectional airflow, the size of work area can reach up to 1470x620x570mm. The cabinet adopts cold rolled steel or stainless steel to ensure the best ability to prevent rust or corrode. Meantime, the clean class can reach 100 rank.

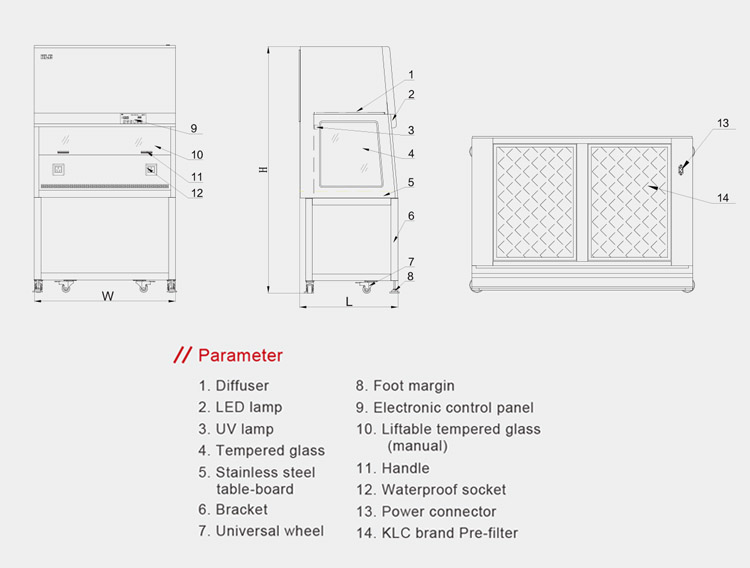

Architectural feature
Tandem assembly: High cleanliness, low noise, cabinet and support stand could be disassembled and moveable. Also it can connect to assembly line.
Protective lifting glass window: 6 mm protective glass, easy to pull up and down without noise. Provides a closed environment for the working area, effectively prevent cross infection, cleanliness of the working area reaches ISO5, static 100.
Roomy working area: Good appearance, large working area, the size can be customized.
Rust and corrosion protection material: The cabinet adopts cold rolled steel or stainless steel to ensure the best ability to prevent rust or corrode.
Application: Widely used in the need of local purification, such as laboratory, operating room, bio-pharmaceutical, opto-electronics, micro-electronics, hard disk manufacture etc.

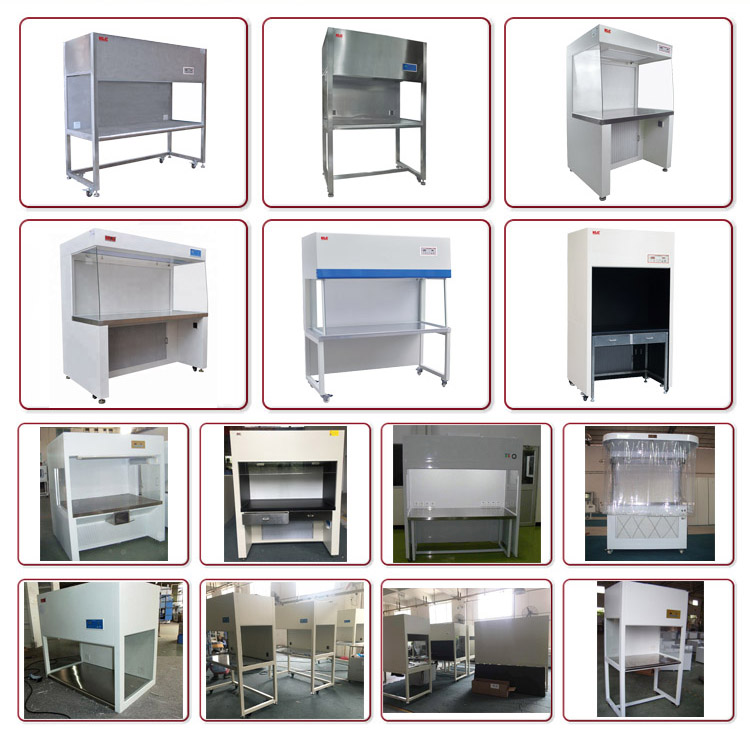

Custom Design
Product Specification
| Item |
Vertical Flow Clean Bench for One Person |
Small Vertical Flow Clean Bench for Two Person |
Big Vertical Flow Clean Bench for Two Person |
|---|---|---|---|
| Model | CBVN-1 | CBVN-2 | CBVN-3 |
| External Size (WxLxHmm) | 1040×725×1820 | 1340×725×1820 | 1540×725×1820 |
| Internal Size (WxLxHmm) | 970×620×570 | 1270×620×570 | 1470×620×570 |
|
Purification rank (ISO14644-1 standard) |
100 | 100 | 100 |
| Airflow (m³/h) | 950 | 1300 | 1500 |
| Wind Velocity (m/s) | 0.25 ~ 0.5 | 0.25 ~ 0.5 | 0.25 ~ 0.5 |
| Filtration efficiency (%@0.3μm) | 99.99 | 99.99 | 99.99 |
| Illumination (≥1ux) | >300 | >300 | >300 |
| Power (W) | 115 | 180 | 180 |
| Noise dB (equipment edge) | ≤65 | ≤65 | ≤65 |
| Power supply (V/Hz) | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz |
| LED standard (W×PC) | 18×1 | 18×1 | 36×1 |
| Window opening height |
Maximum 360 mm |
||
| Material |
The cabinet is cold rolled steel or stainless steel the table-board is sand light stainless steel |
||
Application
Widely used in scientific research and production department which needs clean sterile working environment in local, such as medicine, biopharming, foodstuff, medical experiment, optics, electron, sterile laboratory, sterile microbial inspection, plant tissue culture, etc
ISO14644-1 standards, with overheating protection in order to increase users' safety application. The surface is smooth and bright, lower air resistance and good sound insulation. Special air entrance design and lower the noise effectively.
Learn More
Use efficiency increased by 50%: Round air without collision, centrifugal rotating, and tension continuously strengthen, quickly take away the dust particles
Learn More
Designers carefully designed the diffuser plate to ensure that the airjet speed to prevent the product from create eddy current.
Learn More
It helps to minimize the risk of cross-contamination from the operator's activities, ensuring the safety of both the operator and the samples or products being handled.
Learn More
1. Adopts polish stainless steel inside, which is flat, neat and wearable. The surface material of pass box is cold rolled steel or stainless steel. 2. Doors in two sides with mechanical or electronic interlock device enable two doors can't be in the open state at the same time. 3. Pass box with special sealing strips to guarantee the airproof.
Learn More
The two doors cannot be opened or closed at the same time to avoid cross contamination; Has emergency stop device; Automatic door opener/closer
Learn More
DOP dynamic pass box can act as an air lock to prevent high-pressure leakage into clean room
Learn More
This design helps distribute the air more evenly across the surface of the HEPA filter, reducing the accumulation of particles and extending the filter's lifespan.
Learn More
The way of return air from bottom, dust directly falling as per their own natural gravity. Top of the high-speed wind blowing likes the piston movement, can take the dust away quickly by the bottom elevated floor.
Learn More

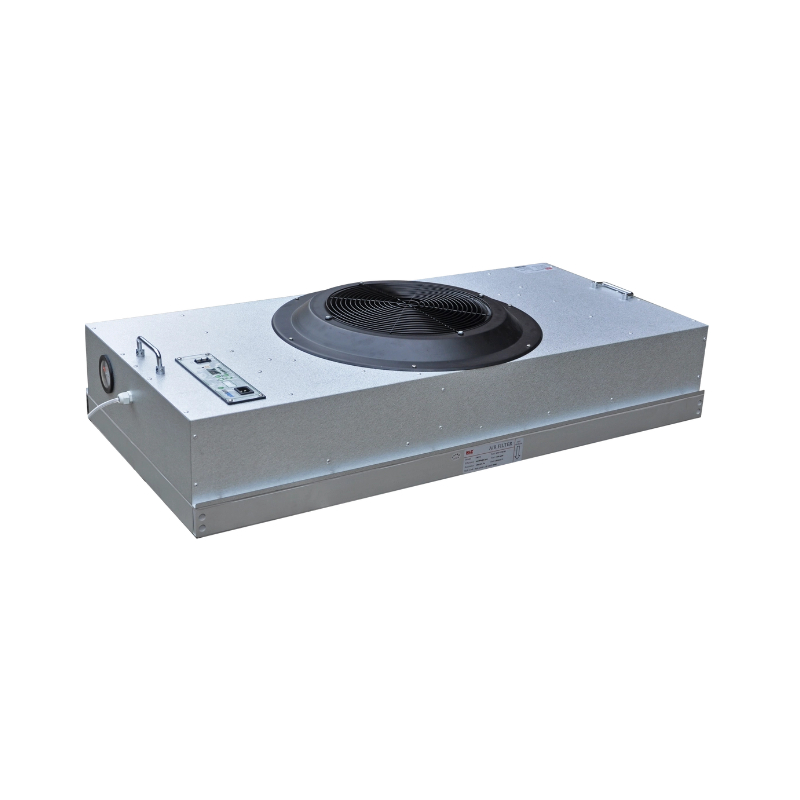

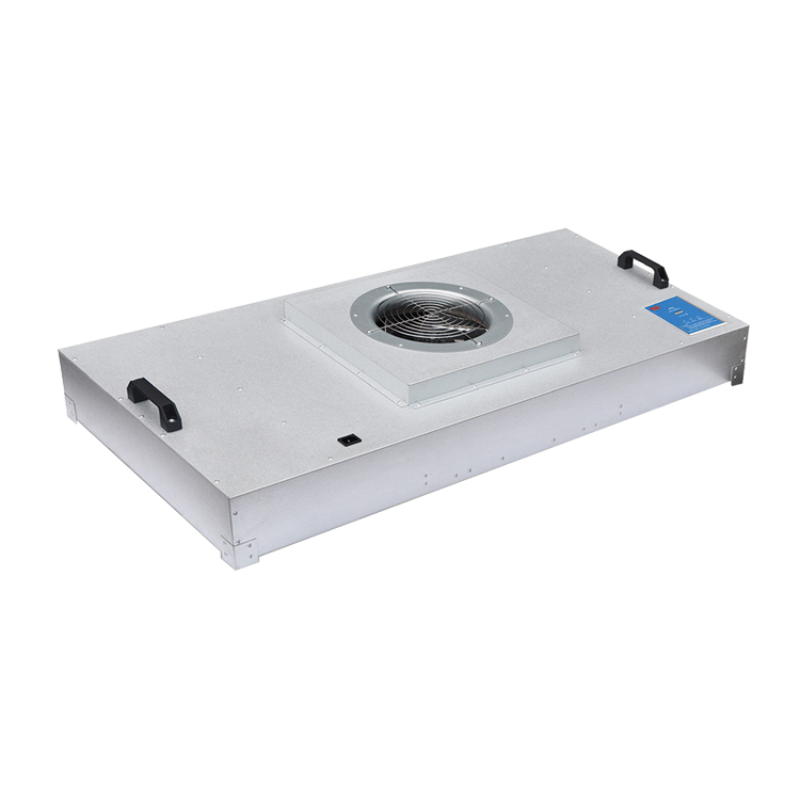

It is 100mm thinner than the ordinary FFU.It has the characteristics of light weight, corrosion resistance, rust prevention and beautiful appearance.
Learn More
Using leading resistance drain layer technology which allows reasonable airflow distribution inside the clean room , effectively guarantee the indoor cleanliness.
Learn More

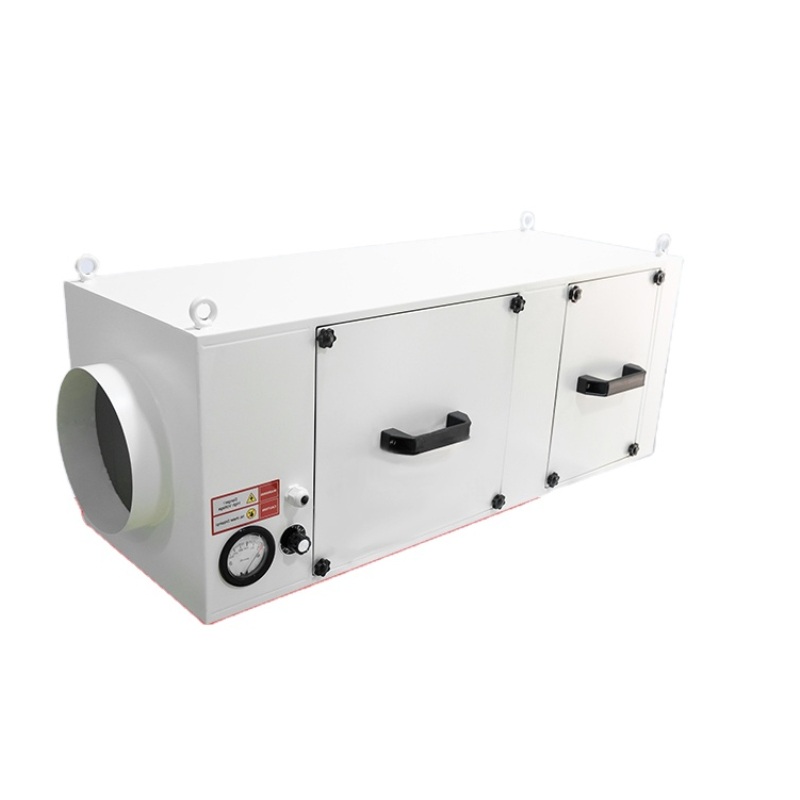

The design is for long distance air supply or discharge, which has advantages of maintenance free, little vibration, low noise and big power air supply. Hanging or floor mounting freely.
Learn More
Customized design and functions for various application: customized T-shaped, L-shaped, Z-shaped, U-shaped and other shapes, also different materials and components
Learn More
Stainless steel high-speed airflow nozzles, durability, corrosion resistance, easy cleaning and maintenance, high hygiene standards, and compatibility with various disinfection agents.
Learn More
It has the advantages of small vibration, filter replacement reminder, maintenance-free, and corrosion resistance.
Learn More

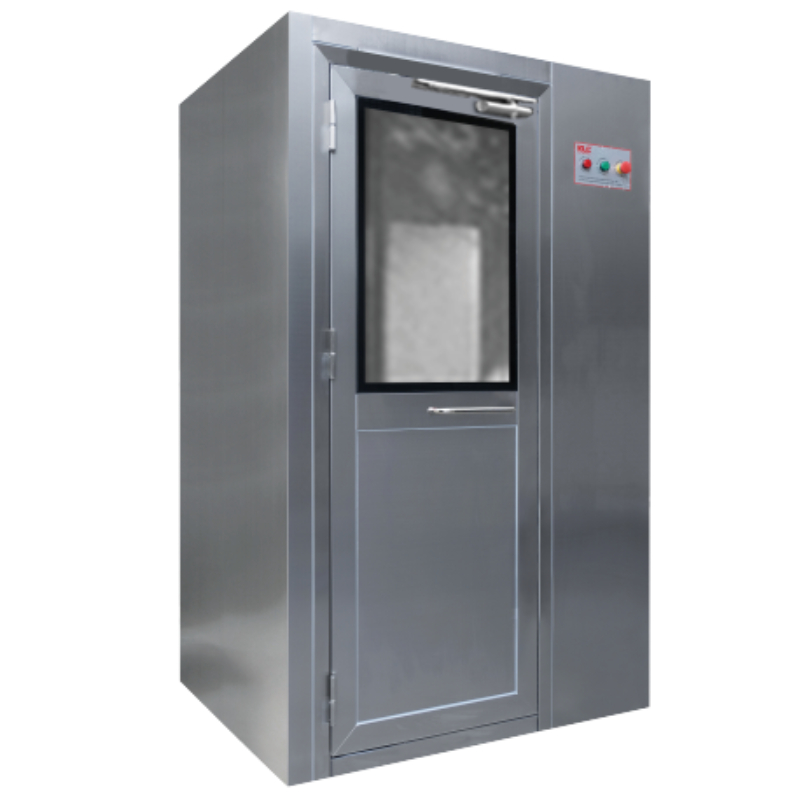

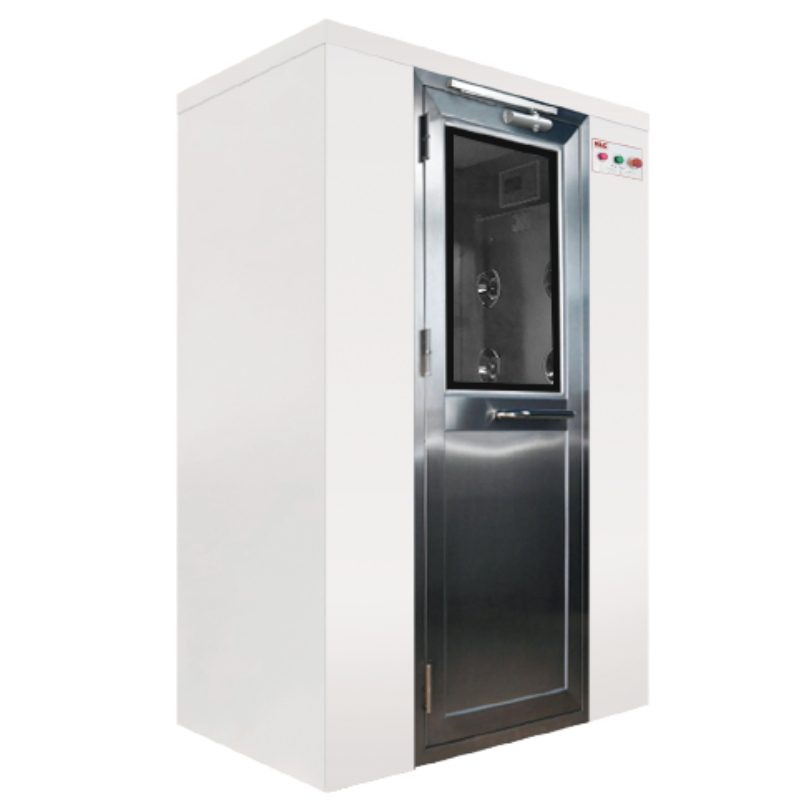

Two-doors electronic interlock to prevent cross-infection and to achieve sealing requirements, also with infrared probe, transparent window, infrared induction blowing, clear indicator light, emergency stop switch.
Learn More

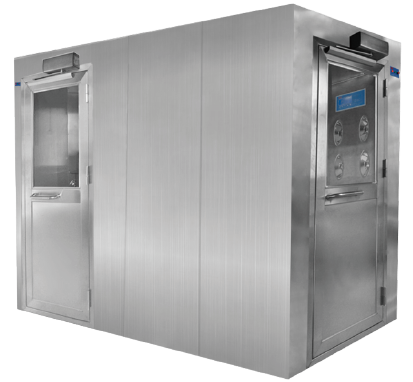

Intelligent control. Adjustable blowing time and interlock system. Strong airproof effect. Stainless steel nozzles at three sides and big air volume. Low noise fan.
